TinyFlow Design Rules Manual (v0.3)
Adapted from MOSIS Scalable CMOS (SCMOS) Revision 8.0 (Technology: SCN6M DEEP) (https://www.southampton.ac.uk/~bim/notes/ice/DesignRules/scmos-main.html#tech-codes)
Authors: Vayun Tiwari
Last updated: January 27th, 2026
nwell
| Rule | Description | \(\lambda\) |
|---|---|---|
| 1.1 | Minimum width | 12 |
| 1.3 | Minimum spacing between wells at same potential | 6 |

active
| Rule | Description | \(\lambda\) |
|---|---|---|
| 2.1 | Minimum width | 3 |
| 2.2 | Minimum spacing | 3 |
| 2.3 | Source/drain active to well edge | 6 |
| 2.4 | Substrate/well contact active to well edge | 3 |
| 2.5 | Minimum spacing between non-abutting active of different implant | 4 |

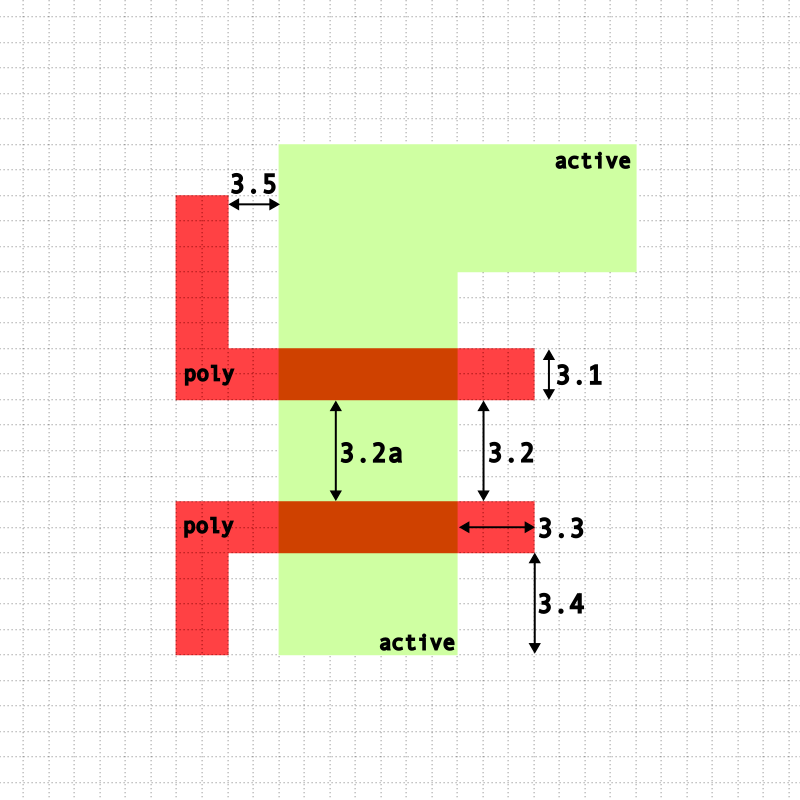

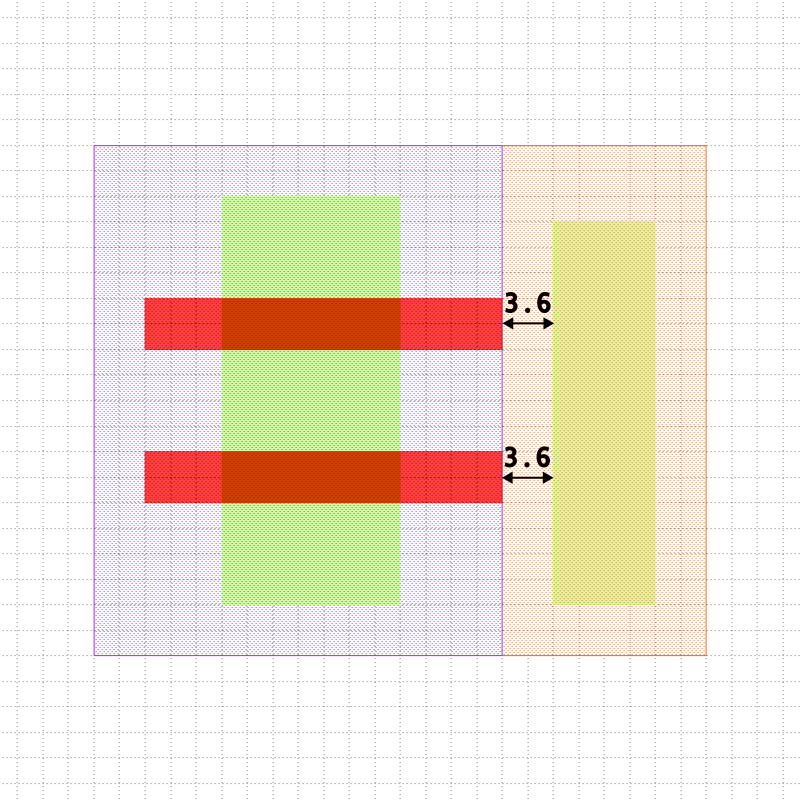

poly
| Rule | Description | \(\lambda\) |
|---|---|---|
| 3.1 | Minimum width | 2 |
| 3.2 | Minimum spacing over field | 3 |
| 3.2a | Minimum spacing over active | 4 |
| 3.3 | Minimum gate extension of active | 3 |
| 3.4 | Minimum active extension of poly | 4 |
| 3.5 | Minimum field poly to active | 1 |

pselect & nselect
| Rule | Description | \(\lambda\) |
|---|---|---|
| 4.1 | Minimum select spacing to channel of transistor to ensure adequate source/drain width | 3 |
| 4.2 | Minimum select overlap of active | 2 |
| 4.3 | Minimum select overlap of contact | 2 |
| 4.4 | Minimum select width and spacing (P and N-select may coincident, but must not overlap) | 4 |

contact to poly
| Rule | Description | \(\lambda\) |
|---|---|---|
| 5.1 | Exact contact size | 2×2 |
| 5.2 | Minimum poly overlap | 2 |
| 5.3 | Minimum contact spacing | 4 |
| 5.4 | Minimum spacing to gate of transistor | 2 |

contact to active
| Rule | Description | \(\lambda\) |
|---|---|---|
| 6.1 | Exact contact size | 2×2 |
| 6.2 | Minimum active overlap | 2 |
| 6.3 | Minimum contact spacing | 4 |
| 6.4 | Minimum spacing to gate of transistor | 2 |

metal1
| Rule | Description | \(\lambda\) |
|---|---|---|
| 7.1 | Minimum width | 3 |
| 7.2 | Minimum spacing | 3 |
| 7.3 | Minimum overlap of contact or via | 1 |
| 7.4 | Minimum spacing when either metal line is wider than 10 lambda | 6 |
| 7.5 | Minimum area | 25 \(\lambda\)2 |

metal1 label
| Rule | Description | \(\lambda\) |
|---|---|---|
| label.1 | Track alignment | - |
| label.2 | Minimum metal1 overlap | 4 \(\times\) 4 |

prboundary
| Rule | Description | \(\lambda\) |
|---|---|---|
| prboundary.1 | Minimum spacing to active (does not apply to well-tap active) | 2 |
| prboundary.2 | Minimum spacing to metal1 (does not apply to metal1 VDD/VSS rails) | 2 |
| prboundary.3 | Minimum spacing to poly | 2 |
*these rules ensure DRC-clean abutment between adjacent standard cells during place & route

via12 & above
coming in v1
