ECE 6745 Project 2: Accelerator Tape-Out
Tape-Out and Report

In this project, students will leverage what they learned in the first project to transition to using a commercial standard-cell library and commercial electronic design automation tools for simulation, synthesis, place-and-route, static-timing analysis, power analysis, design rule checking (DRC), and layout-vs-schematic checking (LVS). Students will develop a simple accelerator in Verilog RTL and evaluate the potential benefit of using this accelerator in the context of a RISC-V processor. Students will then combine just their accelerator with an SPI interface and use the commercial library and tools to turn this accelerator+SPI into complete chip layout in TSMC 180nm. We have some project ideas here:

The project includes three parts:

  • Part A: Software & Testing
  • Part B: Accelerator RTL Milestone
  • Part C: Accelerator RTL Design
  • Part D: ASIC Evaluation
  • Part E: Tape-out and Report

All parts must be done in a group of 2-3 students. You can confirm your group on Canvas (Click on People, then Groups, then search for your name to find your project group).

All students must contribute to and understand all submitted work!

It is not acceptable for one student to do all of part A and a different student to do all of part B/C. It is not acceptable for one student to only focus on one module of part B/C and not understand anything about the other modules. All students must contribute and understand all aspects of all parts. The instructors will also survey the Git commit log on GitHub to confirm that all students are contributing equally. If you are using a "pair programming" style, then both students must take turns using their own account so both students have representative Git commits. Students should create commits after finishing each step of the project, so their contribution is clear in the Git commit log. It is fine for the Git commit log to indicate that a student took the lead on just one part, but the student is still responsible for reviewing and understanding all aspects included as part of the submission. A student whose contribution is limited as represented by the Git commit log will receive a significant deduction to their project score.

This handout assumes that you have read and understand the course tutorials and that you have attended the lab sections. To get started, use VS Code to log into a specific ecelinux server, use MS Remote Desktop to log into the same ecelinux server, source the setup scripts, and clone your remote repository from GitHub:

% source setup-ece6745.sh
% source setup-gui.sh
% xclock &
% mkdir -p ${HOME}/ece6745
% cd ${HOME}/ece6745
% git clone git@github.com:cornell-ece6745/project2-groupXX
% cd project2-groupXX
% tree

where XX should be replaced with your group number. You can both pull and push to your remote repository. If you have already cloned your remote repository, then use git pull to ensure you have any recent updates before working on your lab assignment.

% cd ${HOME}/ece6745/project1-groupXX
% git pull
% tree

where XX should be replaced with your group number. Your repo contains the following directories.

.
├── sim
│   ├── vc
│   ├── tut3_verilog
│   ├── lab5_xcel
│   ├── proc
│   ├── sram
│   ├── cache
│   ├── pmx
│   └── proj2
├── app
│   ├── scripts
│   ├── ece6745
│   ├── simple
│   ├── ubmark
│   └── proj2
└── asic
    ├── designs
    ├── steps
    │   ├── block
    │   │   ├── 01-pymtl-rtlsim
    │   │   ├── 02-synopsys-vcs-rtlsim
    │   │   ├── 03-synopsys-dc-synth
    │   │   ├── 04-synopsys-vcs-fflgsim
    │   │   ├── 05-cadence-innovus-pnr
    │   │   ├── 06-synopsys-pt-sta
    │   │   ├── 07-synopsys-vcs-baglsim
    │   │   ├── 08-synopsys-pt-pwr
    │   │   ├── 09-mentor-calibre-drc
    │   │   ├── 10-mentor-calibre-lvs
    │   │   └── 11-summarize-results
    │   └── chip
    │       ├── 00-padring-gen
    │       ├── 01-pymtl-rtlsim
    │       ├── 02-synopsys-vcs-rtlsim
    │       ├── 03-synopsys-dc-synth
    │       ├── 04-synopsys-vcs-ffglsim
    │       ├── 05-cadence-innovus-pnr
    │       ├── 06-synopsys-pt-sta
    │       ├── 07-synopsys-vcs-baglsim
    │       ├── 08-synopsys-pt-pwr
    │       ├── 09-mentor-calibre-seal
    │       ├── 10-mentor-calibre-fill
    │       ├── 11-mentor-calibre-label
    │       ├── 12-mentor-calibre-drc
    │       ├── 13-mentor-calibre-lvs
    │       └── 14-summarize-results
    └── playground
        └── proj2
            ├── 01-pymtl-rtlsim
            ├── 02-synopsys-vcs-rtlsim
            ├── 03-synopsys-dc-synth
            ├── 04-synopsys-vcs-ffglsim
            ├── 05-cadence-innovus-pnr
            ├── 06-synopsys-pt-sta
            ├── 07-synopsys-vcs-baglsim
            ├── 08-synopsys-pt-pwr
            ├── 09-mentor-calibre-drc
            └── 10-mentor-calibre-lvs

1. Chip Flow

As discussed in Lab 9, the chip flow includes several additional steps compared to the block flow including:

  • Pad ring generation to create the IO cells that enable us to wirebond the chip to the package
  • Seal ring insertion around the edge of the chip to protect the chip during dicing
  • Metal, poly, and diffusion fill to meet DRC density requirements

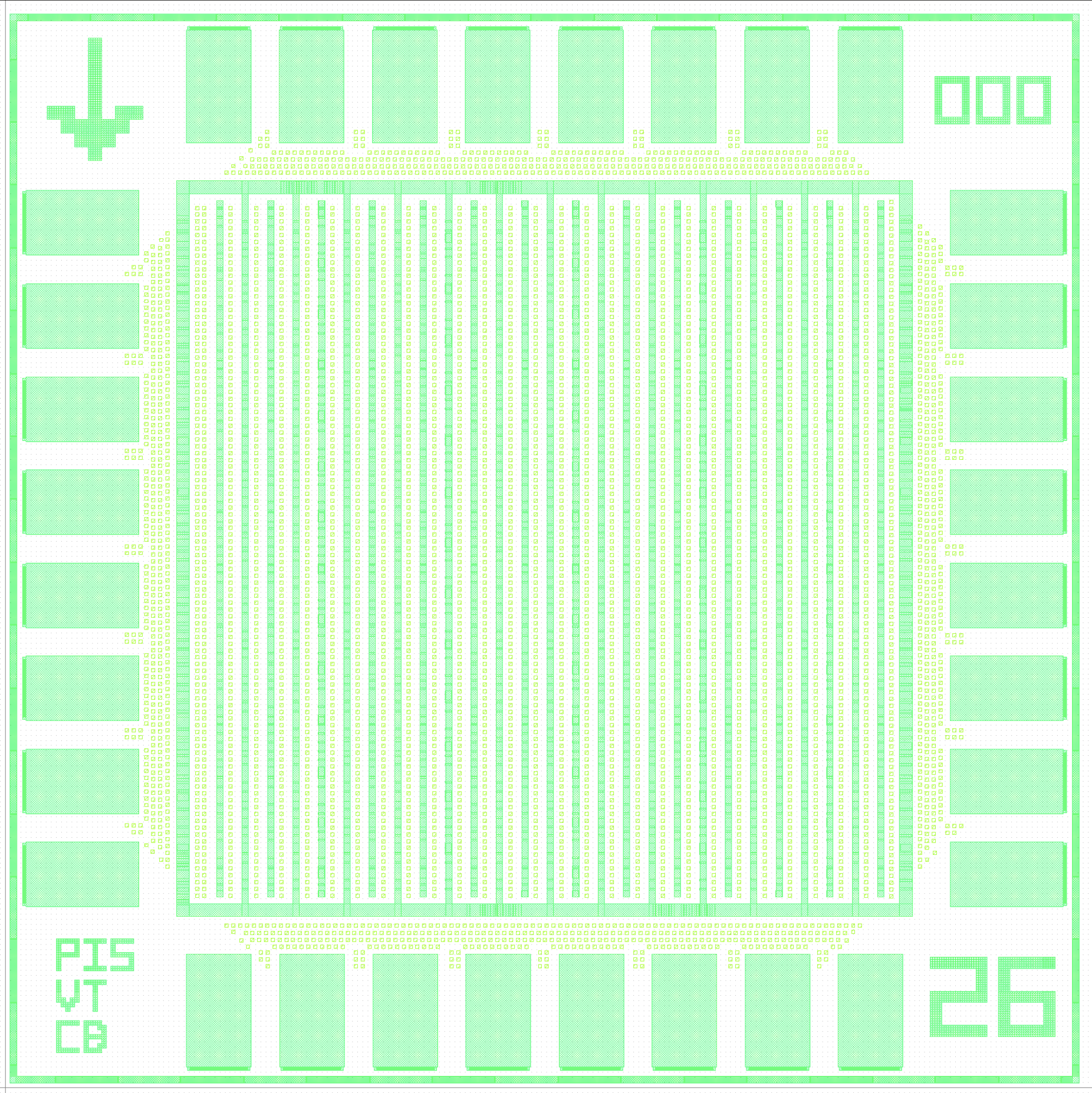

  • Adding labels to indicate pad 1, the year, the chip ID number, and student initials
  • Full chip DRC including additional wire-bond DRC checks
  • Full chip LVS

You should start by creating your own chip top just like in Lab 9.

We have provided you design YAML file for your final tapeout. You will see a group_number. This is NOT your group number, but is instead a special ID number we must use to label your tapeout from other MUSE tapeouts. DO NOT CHANGE THIS - WE HAVE ALREADY POPULATED IT FOR YOU!

You can also put in your initials (remove an item from the initials list if you have less than 3 members in your group), or simply remove the initials list from the yaml altogether if you do not wish to put your initials on the chip (but you totally should!). Initials bust be 1-3 letters each (not NetID's). You just need edit this field:

initials :
  - aaa
  - bbb
  - ccc

The chip flow uses process, voltage, and temperature (PVT) corners. So the Cadence Innovus PNR and Synopsys PrimeTime STA steps now consider:

  • typical case PVT
  • worst case PVT with low voltage, high temperature to stress setup time
  • best case PVT with high voltage, low temperature to stress hold time

You can use the automated ASIC chip flow like this:

% mkdir -p $TOPDIR/asic/build-proj2-tapeout
% cd $TOPDIR/app/build-proj2-tapeout
% pyhflow ../designs/proj2-tapeout.yml
% ./00-padring-gen
% ./01-pymtl-rtlsim
% ./02-synopsys-vcs-rtlsim
% ./03-synopsys-dc-synth
% ./04-synopsys-vcs-ffglsim
% ./05-cadence-innovus-pnr
% ./06-synopsys-pt-sta
% ./07-synopsys-vcs-baglsim
% ./08-synopsys-pt-pwr
% ./09-mentor-calibre-seal
% ./10-mentor-calibre-fill
% ./11-mentor-calibre-label
% ./12-mentor-calibre-drc
% ./13-mentor-calibre-lvs
% ./14-summarize-results

Make sure each step works without errors before moving on to the next step. Your final summarize results must be error free!

If you do not meet the setup time constraint then you can either increase the clock period constraint to be greater than 10ns or potentially change your design to reduce the critical path. If you do not meet the hold time constraint consider increasing the target hold time slack, or also try increasing the clock period constraint. If your design is too big then this will likely cause DRC and LVS errors so you need to reduce the area. If your design fits but has high routing congestion then you might also see DRC errors. You will need to reduce the routing in your design.

2. Tapeout Submission

Once you have finalized your tapeout you need to copy the final GDS, DRC reports, LVS reports, and checksums to the global tapeout directory. You can find this final tapeout collatoral in the final summarize results step.

% cd $HOME/ece6745/project2-groupXX/asic/build-proj2-tapeout/14-summarize-results
% cp final.gds                  /classes/ece6745/secure/tapeouts/groupXX
% cp final-main-drc.summary     /classes/ece6745/secure/tapeouts/groupXX
% cp final-antenna-drc.summary  /classes/ece6745/secure/tapeouts/groupXX
% cp final-wirebond-drc.summary /classes/ece6745/secure/tapeouts/groupXX
% cp final-lvs.report           /classes/ece6745/secure/tapeouts/groupXX
% cp checksums.txt              /classes/ece6745/secure/tapeouts/groupXX
% cp run.log                    /classes/ece6745/secure/tapeouts/groupXX

where groupXX is your group number.

Your Tapeout Must be Reproducible!

We must be able to exactly reproduce all of the tapeout collateral from a clean clone of your group repo using the main branch. If we cannot reproduce your tapeout collateral then unfortunately we will not be able to tapeout your chip.

3. Project 2 Report

Prepare a report that describes your project 2. Use 10-point times or palantino font, single-spaced, with 1" margins. Include your project title, group number, and group members at the top of the first page.

Section 1: Introduction

Include a one paragraph introduction that provides a high-level overview of your project.

Section 2: Baseline Design

Include 1-2 pages that describes your baseline software. If your baseline software is very simple (i.e., triple nested for loop for matrix multiplication) then this might just be one paragraph. Including pseudo-code is fine. Do not include more than 5-10 lines of C code. Include figures inline if it makes sense.

Section 3: Alternative Design

Include 1-2 pages that describes your accelerator. Definitely include a block diagram or two. Describe your accelerator register protocol.

Section 4: Evaluation

Start with a discussion of your accelerator block-level results. Do not just mention the total area, cycle time, and power. Be sure to dive into the results to discuss the detailed area break-down, where the critical path goes, and the detailed power break-down.

Then do a comparative analysis of your processor baseline design vs processor+accelerator alternative design. Be sure to discuss area and cycle time before discussing the total execution time in ns and the energy for your evaluation program. Do not just discuss the results but dive into what these results mean and why each design achieves those results. Why does one design have more area? Why does one design have better performance?

Include an energy efficiency vs performance plot using the provided online visualization tool.

Section 5: Detailed Results

  • Accelerator in Isolation

    • Include screenshot of chip plot from Innovus for youra accelerator in isolation. You must hide the routing. You must highlight different parts of your accelerator in different colors as discussed in lab.

    • Include screenshot of final layout using Klayout. It must show the power ring. This should show all layers. You use the standard layer property file. Hide the text.

    • Include the summarize results. You need some kind of actual evaluation so you will need to modify proj2-xcel-sim to run an evaluation of your accelerator in isolation.

  • Processor Baseline Design Results

    • Include screenshot of chip plot from Innovus. You must hide the routing. You must highlight the register file in red and the rest of the processor in yellow.

    • Include screenshot of final layout using Klayout. It must show the power ring. This should show all layers. You use the standard layer property file. Hide the text.

    • Include the summarize results. You must include the results for your evaluation microbenchmark.

  • Processor+Accelerator Alternative Design Results

    • Include screenshot of chip plot from Innovus. You must hide the routing. You must highlight the register file in red and the rest of the processor in yellow. You must highlight the accelerator in other colors ... at least highlight the entire processor in cyan but you can use more colors if you want to show different parts. Obviously do not reuse yellow or red.

    • Include screenshot of final layout using Klayout. It must show the power ring. This should show all layers. You use the standard layer property file. Hide the text.

    • Include the summarize results. You must include the results for your evaluation microbenchmark.

  • Tapeout Results

    • Include screenshot of chip plot from Innovus for youra accelerator in isolation. You must hide the routing. You must highlight different parts of your accelerator in different colors as discussed in lab.

    • Include screenshot of final layout using Klayout. It must show the pad ring. This should show all layers. You use the standard layer property file. Hide the text.

    • Include the summarize results. You do not need an evaluation for the tapeout, just your tests.

4. Project Code Submission

To submit your code you simply push your code to GitHub. You can push your code as many times as you like before the deadline. Students are responsible for going to the GitHub website for your repository, browsing the source code, and confirming that the code they want to submit is on GitHub. Be sure to verify your code is passing all of your simulations on ecelinux. Your submission will be assessed for code quality and functionalty.

Here is how we will be testing your final code submission for part C. First, we will clone your repo and create an environment variable for the top of your repo.

% mkdir -p ${HOME}/ece6745
% cd ${HOME}/ece6745
% git clone git@github.com:cornell-ece6745/project2-groupXX
% cd project2-groupXX
% TOPDIR=$PWD

Then, we will run your tests for your baseline software both natively, cross-compiled running on the ISA simulator, and cross-compiled running on the processor+cache RTL model.

% mkdir -p $TOPDIR/app/build-native
% cd $TOPDIR/app/build-native
% ../configure
% make proj2-baseline-test
% ./proj2-baseline-test

% mkdir -p $TOPDIR/app/build
% cd $TOPDIR/app/build
% ../configure --host=riscv64-unknown-elf
% make proj2-baseline-test
% ../../sim/pmx/pmx-sim ./proj2-baseline-test

% mkdir -p $TOPDIR/app/build
% cd $TOPDIR/app/build
% ../configure --host=riscv64-unknown-elf
% make proj2-baseline-test
% ../../sim/pmx/pmx-sim --proc-impl rtl --cache-impl rtl ./proj2-baseline-test

Then, we will run your tests for your accelerator FL and RTL models.

% mkdir -p $TOPDIR/sim/build
% cd $TOPDIR/sim/build
% pytest ../proj2/test/Proj2XcelFL_test.py
% pytest ../proj2/test/Proj2Xcel_test.py

Then, we will run your tests for your accelerator software both natively, cross-compiled running on the ISA simulator, and cross-compiled running on the processor+cache+xcel RTL model.

% mkdir -p $TOPDIR/app/build-native
% cd $TOPDIR/app/build-native
% ../configure
% make proj2-xcel-test
% ./proj2-xcel-test

% mkdir -p $TOPDIR/app/build
% cd $TOPDIR/app/build
% ../configure --host=riscv64-unknown-elf
% make proj2-xcel-test
% ../../sim/pmx/pmx-sim --xcel-impl proj2-fl ./proj2-xcel-test

% mkdir -p $TOPDIR/app/build
% cd $TOPDIR/app/build
% ../configure --host=riscv64-unknown-elf
% make proj2-xcel-test
% ../../sim/pmx/pmx-sim --proc-impl rtl --cache-impl rtl \
    --xcel-impl proj2-rtl ./proj2-xcel-test

We will push your accelerator through the flow in isolation.

% mkdir -p $TOPDIR/asic/build-proj2-px-null
% cd $TOPDIR/app/build-proj2-px-null
% pyhflow ../designs/proj2-px-null
% ./run-flow

We will push your processor running the baseline software through the flow.

% mkdir -p $TOPDIR/asic/build-proj2-px-null
% cd $TOPDIR/app/build-proj2-px-null
% pyhflow ../designs/proj2-px-null
% ./run-flow

We will push your processor with accelerator through the flow running the accelerator software.

% mkdir -p $TOPDIR/asic/build-proj2-px-xcel
% cd $TOPDIR/app/build-proj2-px-xcel
% pyhflow ../designs/proj2-px-xcel
% ./run-flow

Finally, we will push your accelerator tapeout through the chip flow.

% mkdir -p $TOPDIR/asic/build-proj2-tapeout
% cd $TOPDIR/app/build-proj2-tapeout
% pyhflow ../designs/proj2-tapeout
% ./run-flow

Your Tapeout Must be Reproducible!

We must be able to exactly reproduce all of the tapeout collateral from a clean clone of your group repo using the main branch. If we cannot reproduce your tapeout collateral then unfortunately we will not be able to tapeout your chip.
