ECE 6745 Project 1: TinyFlow Tape-Out
TinyFlow Back-End

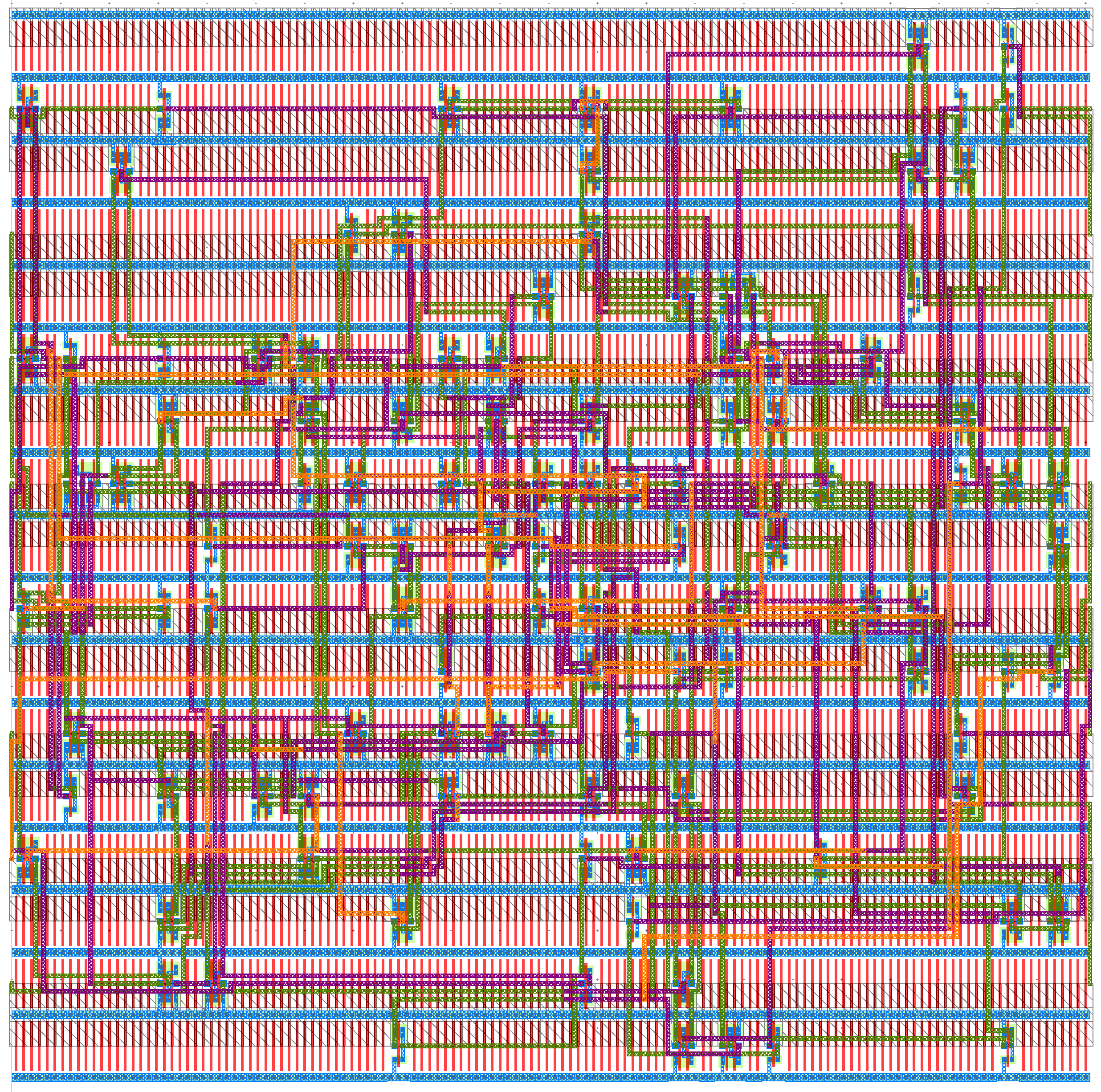

In this project, students will build their own TinyFlow, a very simple standard-cell-based flow. They will develop seven standard cells in TSMC 180nm and the corresponding standard cell behavioral, schematic, layout, extracted schematic, front-end, and back-end views. They will then implement simple algorithms for synthesis (technology mapping via tree covering, static timing analysis) and place-and-route (simulated annealing, 3D maze routing). Finally they will combine this work with open-source Verilog RTL and gate-level simulators and an open-source LVS/DRC tool to create the complete TinyFlow. Even though their TinyFlow will only support a very small combinational subset of Verilog, this project still gives students a unique hands-on opportunity to appreciate every step required in more sophisticated commercial tools. Each group will create a tiny block using their TinyFlow and these blocks will be aggregated into a single unified tape-out on the TSMC 180nm technology node.
The project includes three parts:
- Part A: TinyFlow Standard Cells
- Part B: TinyFlow Front End
- Part C: TinyFlow Back End
Continue working with your group from Part A and B. You can confirm your group on Canvas (Click on People, then Groups, then search for your name to find your project group).
All students must contribute to all parts!
It is not acceptable for one student to do all of Part A+B and a different student to do all of part C. It is not acceptable for one student to exclusively work on one algorithm while the other student exclusively works on a different algorithm. All students must contribute to all parts. The instructors will also survey the Git commit log on GitHub to confirm that all students are contributing equally. If you are using a "pair programming" style, then both students must take turns using their own account so both students have representative Git commits. Students should create commits after finishing each step of the project, so their contribution is clear in the Git commit log. A student's whose contribution is limited as represented by the Git commit log will receive a significant deduction to their project score.
This handout assumes that you have read and understand the course
tutorials and that you have attended the lab sections. To get started,
use VS Code to log into a specific ecelinux server, use MS Remote
Desktop to log into the same ecelinux server, source the setup scripts,
and clone your remote repository from GitHub:
% source setup-ece6745.sh
% source setup-gui.sh
% xclock &
% mkdir -p ${HOME}/ece6745
% cd ${HOME}/ece6745
% git clone git@github.com:cornell-ece6745/project1-groupXX
% cd project1-groupXX
% tree
where XX should be replaced with your group number. You can both pull
and push to your remote repository. If you have already cloned your
remote repository, then use git pull to ensure you have any recent
updates before working on your lab assignment.
where XX should be replaced with your group number. Your repo currently
contains the following files (more files will be released soon!).
.
├── asic
│ └── build-fa
│ ├── 01-verilator-rtlsim
│ ├── 02-iverilog-rtlsim
│ ├── 03-tinyflow-synth
│ │ └── run.py
│ └── 04-iverilog-ffglsim
├── rtl
│ ├── FullAdder.v
│ └── test
│ └── FullAdder-test.v
├── stdcells
│ ├── stdcells.v
│ ├── stdcells.sp
│ ├── stdcells.gds
│ ├── stdcells-rcx.sp
│ ├── stdcells-fe.yml
│ ├── stdcells-be.yml
│ └── verilog-test
│ └── ...
└── tinyflow
├── conftest.py
├── pytest.ini
├── pnr
│ ├── tinyv.lark
│ ├── verilog_parser.py
│ ├── StdCellBackEndView.py
│ ├── TinyBackEndDB.py
│ ├── TinyBackEndGUI.py
│ ├── floorplan.py
│ ├── place.py
│ ├── place_unopt.py
│ └── tests
│ └── ...
├── synth
│ ├── tinyv.lark
│ ├── verilog_parser.py
│ ├── StdCellFrontEndView.py
│ ├── TinyFrontEndDB.py
│ ├── TinyFrontEndGUI.py
│ ├── substitute.py
│ ├── techmap_unopt.py
│ ├── techmap.py
│ ├── sta.py
│ └── tests
│ └── ...
├── tinyflow-pnr
└── tinyflow-synth
Go ahead and create a build directory where you will run the synthesis tools and tests:
1. Background on TinyFlow
The complete TinyFlow standard-cell and ASIC design flow is shown below with the back end highlighted in red.

The back end includes place-and-route, design rule checking (DRC), and layout-vs-schematic (LVS). Place-and-route itself consists of six key algorithms.

-
Gate-Level Netlist Reader: Parses Verilog gate-level netlist into directed acyclic graph of standard cells
-
Floorplan: Creates grid of sites and positions input/output pins
-
Place: Places each standard cell on the grid of sites
-
Route: Routes each net on the routing grid
-
Fill: Fills in empty space using FILL standard cells
-
Layout & Gate-Level Netlist Writer: Outputs the final layout along with an updated standard-cell gate-level netlist
We provide you the readers and writers. In this project you are reponsible for implementing the floorplan, place, route, and fill algorithms.
2. Algorithm: Floorplan
Implement both fixed floorplan and automatic floorplan algorithms in the
tinyflow/pnr/floorplan.py file.
2.1. Fixed Floorplan
The fixed floorplan is useful if we know ahead of time the size of the final block and the position of the input and output pins. This kind of floorplanning will be used for the actual tapeout.
Function: floorplan_fixed(db, view, width_um, height_um, io_locs)
Goal: Initialize floorplan with fixed dimensions and IO locations.
Args:
db: TinyBackEndDB containing cells to placeview: StdCellBackEndView containing site dimensionswidth_um: Chip width in micrometersheight_um: Chip height in micrometersio_locs: Dict mapping port names to (x_um, y_um) locations
Returns: None (modifies db in place)
Hint: You will need to use db.floorplan(width,height) which
takes as input a width and height in units of sites. You will need to
use db.get_ioport(name).place(i,j) which takes as input the
location of the ioport in units of the routing grid. Carefully
consider how to convert the provided width, height, and locations in
um to the appropriate units when calling db.floorplan(width,height)
and db.get_ioport(name).place(i,j)
To test your floorplan interactively with the REPL and GUI, you will
need a gate-level netlist as input. Run FullAdder.v through Part B's
synthesis first to generate asic/playground/03-tinyflow-synth/post-synth.v.
Then try your fixed floorplan:
tinyflow-pnr> view = StdCellBackEndView(be='../../stdcells/stdcells-be.yml', gds='../../stdcells/stdcells.gds')
tinyflow-pnr> db = TinyBackEndDB(view)
tinyflow-pnr> db.read_verilog('../../asic/playground/03-tinyflow-synth/post-synth.v')
tinyflow-pnr> db.enable_gui()
tinyflow-pnr> io_locs = { '<port_name>': (<x_um>, <y_um>), ... }
tinyflow-pnr> floorplan_fixed(db, view, <width_um>, <height_um>, io_locs)
You should see the site grid and IO ports appear in the GUI.
2.2. Automatic Floorplan
The automatic floorplan is useful for design-space exploration where we want to rapidly place-and-route a design without knowing ahead of time how large it might be. The actual width and height of the floorplan is calculated from the target utilization. If the target utilization is 0.5 then this means we want the sum of the area of all the standard cells divided by the area of the final floorplan to be about 0.5. The actual input pin locations are evenly distributed along the left edge of the block, and the actual output pin locations are evenly distributed along the right edge of the block.
Function: floorplan_auto(db, view, target_utilization, aspect_ratio)
Goal: Determine chip dimensions based on cell area and utilization. Also places IO pins along the chip edges.
Args:
db: TinyBackEndDB containing cells to placeview: StdCellBackEndView containing site dimensionstarget_utilization: Fraction of area used (0.0 to 1.0)aspect_ratio: Physical width / height (1.0 = square chip)
Returns: None (modifies db in place)
Hint: Sum the area of all of the standard cells. Keep in mind
get_width() for a standard cell returns the width of the standard
cell in sites. Divide this total area by the target utilization to
get the actual block are. Use the aspect ratio to determine the
height and width of the block, and then use these values with
db.floorplan(width,height). Use db.get_ioport(name).place(i,j) to
place the input/output pins. Carefully consider the units when
specifying all widths, heights, and locations.
Try your automatic floorplan interactively using the REPL with the GUI:
tinyflow-pnr> view = StdCellBackEndView(be='../../stdcells/stdcells-be.yml', gds='../../stdcells/stdcells.gds')
tinyflow-pnr> db = TinyBackEndDB(view)
tinyflow-pnr> db.read_verilog('../../asic/playground/03-tinyflow-synth/post-synth.v')
tinyflow-pnr> db.enable_gui()
tinyflow-pnr> floorplan_auto(db, view, 0.3, 1.0)
You should see the floorplan grid and IO ports appear in the GUI. Try different utilization and aspect ratio values to see how they affect the floorplan.
Once you have implemented both floorplan algorithms, run all of the floorplan tests:
3. Algorithm: Optimized Placement
Implement a simulated annealing placement algorithm that attempts to
optimize overall wirelength in the tinyflow/pnr/place.py file. Use the
total half-perimeter wire length (HPWL) as the cost estimate for a
placement.
Instead of placing cells on the site grid, your algorithm should place cells on the coarser placement grid. To determine the placement grid, first find the max width across all standard cells in the design. Then use this max width to set the size of each location in the placement grid. Although this is less area efficient, it significantly simplifies placement since we are guaranteed placed cells will not overlap.
3.1. Half-Perimeter Wire Length (HPWL)
We will be using the total half-perimeter wire length (HPWL) as our cost metric for any given placement. The HPWL is computed over all placed cells and IO ports. For each net:
- Collect all placed pins (skip pins whose cell is not yet placed)
- Find the minimal bounding box around these pins
- The HPWL for that net is the height plus width of the bounding box
Nets with fewer than two placed pins contribute zero (no wires!). To
find the total HPWL simply add together the HPWL for every net.
Implement the hpwl function in tinyflow/pnr/place.py.
Function: hpwl(db)
Goal: Compute total HPWL (half-perimeter wirelength) using
bounding box per net. Use pin locations in routing grid units
(from pin.get_node()).
Args:
db: TinyBackEndDB with placement
Returns: HPWL (int)
Hint: pin.get_node() returns (None, None, None) if the
pin's cell is not placed. Use this to skip unplaced pins.
Try computing HPWL interactively using the REPL with the GUI:
tinyflow-pnr> view = StdCellBackEndView(be='../../stdcells/stdcells-be.yml', gds='../../stdcells/stdcells.gds')
tinyflow-pnr> db = TinyBackEndDB(view)
tinyflow-pnr> db.read_verilog('../../asic/playground/03-tinyflow-synth/post-synth.v')
tinyflow-pnr> db.enable_gui()
tinyflow-pnr> floorplan_auto(db, view, 0.3, 1.0)
tinyflow-pnr> hpwl(db)
The IO ports are already placed by floorplan_auto. Try manually
placing cells using cell.set_place(row, col) and calling
hpwl(db) to see how your HPWL changes. You can also call cell.set_unplace() and cell.set_place() to move cells around and re-evaluate the HPWL.
3.2. Initial Placement
For simulated annealing we want to start with a random initial placement.
Remember we are placing cells on the coarser placement grid. The seed
can be used to create different random initial placements which might be
useful if we are unable to route a specific placement. Ensure that two
cells are never overlap. Implement the place_initial function in
tinyflow/pnr/place.py.
Function: place_initial(db, seed)
Goal: Random initial cell placement.
Args:
db: TinyBackEndDB with floorplan initializedseed: Random seed for reproducibility (None = don't reseed)
Returns: None (modifies db in place)
Try your initial placement in the REPL:
tinyflow-pnr> view = StdCellBackEndView(be='../../stdcells/stdcells-be.yml', gds='../../stdcells/stdcells.gds')
tinyflow-pnr> db = TinyBackEndDB(view)
tinyflow-pnr> db.read_verilog('../../asic/playground/03-tinyflow-synth/post-synth.v')
tinyflow-pnr> db.enable_gui()
tinyflow-pnr> floorplan_auto(db, view, 0.3, 1.0)
tinyflow-pnr> place_initial(db, seed=0)
You should see the cells randomly placed in the GUI.
3.3. Simulated Annealing Placement
This function should assume we have already done the initial placement. The function should iterate for a given number of iterations. Each iteration should:
- Initialize the temperature with the given initial temperature
- Randomly select a cell
- Randomly select a location in the coarser placement grid
- If the selected location is empty, perform the move by calling
cell.set_unplace()thencell.set_place()at the new location - If the selected location is not empty, perform the swap by first
calling
set_unplace()on both cells to free their sites, then callingset_place()on both cells at their new locations - Compute the new total HPWL cost after the move or swap
- If the change in cost is negative, accept the move or swap
- If the change in cost is positive, only accept the move or swap with probability \(e^{-\Delta c/T}\)
- If the move or swap is not accepted, revert by calling
set_unplace()andset_place()to restore the original positions - Decrease the temperature by the cooling rate
- If the temperature is less than the given final temperature stop
Note that students can experiment with different cost functions. They may
want to penalize a net with a very small HPWL to try and avoid cells from
being bunched too close together causing significant routing congestion.
Implement the place_anneal function in tinyflow/pnr/place.py.
Function: place_anneal(db, seed, initial_temp, cooling_rate, final_temp, max_iter)
Goal: Simulated annealing optimization to minimize wirelength.
Args:
db: TinyBackEndDB with initial placementseed: Random seed for reproducibility (None = don't reseed)initial_temp: Starting temperaturecooling_rate: T *= cooling_rate each iterationfinal_temp: Stop when T < final_tempmax_iter: Maximum iterations
Returns: None (modifies db in place)
Try simulated annealing in the REPL:
tinyflow-pnr> view = StdCellBackEndView(be='../../stdcells/stdcells-be.yml', gds='../../stdcells/stdcells.gds')
tinyflow-pnr> db = TinyBackEndDB(view)
tinyflow-pnr> db.read_verilog('../../asic/playground/03-tinyflow-synth/post-synth.v')
tinyflow-pnr> db.enable_gui()
tinyflow-pnr> floorplan_auto(db, view, 0.3, 1.0)
tinyflow-pnr> place_initial(db, seed=0)
tinyflow-pnr> place_anneal(db, seed=0)
You should see the cells move in the GUI as simulated annealing optimizes the placement. The HPWL should decrease compared to the initial placement.
3.4. Placement
Now that we have an initial placement algorithm and the simulated
annealing we can put them together in the placement function which should
just call place_init and then place_anneal. Implement the place
function in tinyflow/pnr/place.py.
Function: place(db, seed)
Goal: Run complete placement: initial placement, SA optimization.
Args:
db: TinyBackEndDB with initial placementseed: Random seed for reproducibility (None = don't reseed)
Returns: None (modifies db in place)
Once you have implemented all placement functions, try running the complete placement in a fresh REPL session:
tinyflow-pnr> view = StdCellBackEndView(be='../../stdcells/stdcells-be.yml', gds='../../stdcells/stdcells.gds')
tinyflow-pnr> db = TinyBackEndDB(view)
tinyflow-pnr> db.read_verilog('../../asic/playground/03-tinyflow-synth/post-synth.v')
tinyflow-pnr> db.enable_gui()
tinyflow-pnr> floorplan_auto(db, view, 0.3, 1.0)
tinyflow-pnr> place(db)
You should see the cells being placed and then optimized in the GUI. Then run all of the placement tests to verify your implementation:
4. Algorithm: Routing
After placement, we need to connect the pins of each net using metal
wires. Routing operates on a 3D routing grid where (i, j) are the
spatial coordinates and k is the metal layer. Each layer serves a
different purpose:
- M1 (k=1): Intra-cell routing only (pins live here) — do not route on M1
- M2–M4 (k=2–4): Inter-cell routing layers — route here
- M5–M6 (k=5-6): Power grid — do not use
A wire segment on the same layer is a planar move. Changing layers
at the same (i, j) location is a via. Each node (i, j, k) in
the routing grid can only be occupied by one net at a time. Use
db.get_occupancy(i, j, k) to check if a node is available; it
returns None if free, or the occupying Net if taken.
Routing is decomposed into three functions that build on each other:
-
bfs_to_treefinds a path on M2–M4 from a starting node to an existing routing tree using BFS and commits the path to the routing grid. This is the core pathfinding building block. -
single_routeroutes all pins of a single net. It is responsible for adding M1-to-M2 via segments at each cell pin (since pins live on M1 but BFS operates on M2-M4). It connects pins incrementally by growing a routing tree; each unconnected pin is BFS-routed to the nearest tree node. -
multi_routeroutes all nets in the design by callingsingle_routefor each net. If a net fails to route, it rips up all routing and retries with a different net ordering.
Implement these functions in tinyflow/pnr/single_route.py and
tinyflow/pnr/multi_route.py as described below.
Pin Occupancy Reservation
Cell pins live on M1 and IO port pins live on M2. When a cell is placed, the backend database automatically reserves M1 through M4 at each pin location in the occupancy grid. When an IO port is placed, it reserves M2 through M4. This creates a pillar of occupied nodes so that other nets will route around the pin rather than across it. Without this reservation, a net could route across a pin's M2 node without knowing a pin is directly below on M1, and when we later try to route that pin upward, there would be no escape path. Nodes belonging to the pin's own net can still pass through.
You do not need to do anything to handle this reservation. It is
already reflected in db.get_occupancy(i, j, k), so your BFS will
naturally route around these pillars. Your routing code only needs
to add the M1-to-M2 via segments to connect each cell pin up to
the routing layers.
4.1. BFS to Tree
The core building block for routing is a BFS (breadth-first search)
that finds a path from a starting node to any node in an existing
routing tree. The BFS explores the 3D routing grid on layers M2–M4,
making planar moves (same layer, adjacent i or j) and via moves
(same i,j, adjacent k). A node is blocked if it is occupied by a
different net. Nodes occupied by the current net (i.e., already part
of the routing tree) are valid targets; reaching any of them means
we have connected to the tree.
Implement the bfs_to_tree function in tinyflow/pnr/single_route.py.
Function: bfs_to_tree(db, net, start, tree)
Goal: BFS from start to any node in tree, avoiding
nodes occupied by other nets.
Args:
db: TinyBackEndDB for occupancy checksnet: Current net (allowed to pass through own routes)start: Starting(i, j, k)tupletree: Set of(i, j, k)tuples representing the current routing tree
Returns: Path as list of (i, j, k) tuples from start
to tree, or None if no path exists. On success, the path is
also committed as Line segments to the net.
Hint: Use a standard BFS with a queue and parent dictionary.
Each node has up to six neighbors and should stay within layers
2-4. Use db.get_occupancy(i, j, k) to
check if a neighbor is blocked by another net. Backtrace through
the parent dictionary to obtain the path. Convert the path to
Line segments with Line(path[n], path[n+1]) and commit with
net.add_route_segments(lines).
Try your BFS interactively using the REPL with the GUI:
tinyflow-pnr> view = StdCellBackEndView(be='../../stdcells/stdcells-be.yml', gds='../../stdcells/stdcells.gds')
tinyflow-pnr> db = TinyBackEndDB(view)
tinyflow-pnr> db.read_verilog('../../asic/playground/03-tinyflow-synth/post-synth.v')
tinyflow-pnr> db.enable_gui()
tinyflow-pnr> floorplan_auto(db, view, 0.3, 1.0)
tinyflow-pnr> place(db, seed=0)
tinyflow-pnr> net = db.get_net('<net_name>')
tinyflow-pnr> start = (<i>, <j>, 2)
tinyflow-pnr> tree = {(<i_t>, <j_t>, 2)}
tinyflow-pnr> path = bfs_to_tree(db, net, start, tree)
Pick a net and two of its pin locations (elevated to M2) as the start
and tree. You should see the BFS path appear in the GUI. You can use
db.clear_all_routing() to clear and try again easily.
4.2. Single-Net Routing
Given a net, single_route connects all of its pins by growing a
routing tree. Cell pins live on M1, but BFS operates on M2-M4, so
you need to work with the M2 "elevated" pin locations for BFS and
add the M1-to-M2 via segments separately.
The algorithm works as follows:
- Collect the pin locations for the net. For cell pins on M1, add
the M1-to-M2 via
Linesegment and use the M2 location(i, j, 2)as the BFS routing point - Initialize the routing tree with the first pin
- For each remaining unconnected pin, use
bfs_to_treeto find a path from the pin to the tree (this also commits the path) - Grow the tree with the returned path so subsequent pins can connect to any node routed so far
Implement the single_route function in
tinyflow/pnr/single_route.py.
Function: single_route(db, net_name)
Goal: Route a single net by connecting all pins using tree-growing BFS.
Args:
db: TinyBackEndDB with placed designnet_name: Name of the net to route
Returns: True if routing succeeded, False otherwise.
Hint: Use a set for the tree and tree.update(path) to
grow it after each successful BFS. bfs_to_tree handles
committing the path to the routing grid. You still need to
commit the M1-to-M2 via segments separately using
net.add_route_segments().
Try routing a single net in the REPL:
You should see the full route for that net appear in the GUI, including
the M1-to-M2 vias at each pin. Use db.clear_all_routing() to clear
and try different nets.
Heuristic: Connect Closest Pin First
Instead of connecting pins in arbitrary order, you can improve route quality by always connecting the closest unconnected pin to the tree next (using Manhattan distance). This tends to produce shorter routes and reduce congestion.
4.3. Multi-Net Routing
The goal of multi_route is to route all nets in the design using
single_route. The order in which nets are routed matters: nets
routed first have more available routing resources, while nets routed
later may be blocked by earlier routes.
The algorithm works as follows:
- Sort nets by HPWL (shortest first) using
net_hpwlas the sort key, since shorter nets are easier to route and less likely to block others - Route each net using
single_route - If a net fails to route, rip up all routing using
db.clear_all_routing(), move the failed net to the front of the list, and retry - If all retries are exhausted, return
False
Implement the multi_route function and the net_hpwl helper
function in tinyflow/pnr/multi_route.py.
Function: net_hpwl(net)
Goal: Compute HPWL for a single net (used for sorting).
Args:
net: A singleNetobject
Returns: HPWL for this net (int)
Function: multi_route(db, max_retries)
Goal: Route all nets in the design.
Args:
db: TinyBackEndDB with placed designmax_retries: Maximum rip-up and retry attempts
Returns: True if all nets routed, False otherwise.
Hint: Use db.clear_all_routing() to rip up all routes
before each retry attempt. Only route nets with two or more
pins. Use list.remove() and list.insert(0, ...) to move
the failed net to the front.
Try routing all nets in the REPL:
You should see all nets get routed in the GUI.
Once you have implemented the routing algorithms, run all of the routing tests:
% cd ${HOME}/ece6745/project1-groupXX/tinyflow/build
% pytest ../pnr/tests/single_route_test.py -v
% pytest ../pnr/tests/multi_route_test.py -v
5. Algorithm: Fill
After placement and routing, any sites in the core that are not occupied by a standard cell need to be filled with FILL cells. Filler cells ensure there are no gaps in the layout. They maintain continuous n-well and power rail connections across the chip.
The algorithm is straightforward: iterate through every site in the
core grid and mark any empty site as filler. Implement the add_filler
function in tinyflow/pnr/add_filler.py.
Function: add_filler(db)
Goal: Insert filler cells into all empty sites.
Args:
db: TinyBackEndDB with placed and routed design
Returns: None (modifies db in place)
Hint: Use db.get_core() to get the 2D site grid. See
the Site API reference (Section 7.8) for methods to check and
mark sites. After filling, count the filler sites and call
db.set_filler_count(count).
Try adding filler interactively using the REPL with the GUI:
tinyflow-pnr> view = StdCellBackEndView(be='../../stdcells/stdcells-be.yml', gds='../../stdcells/stdcells.gds')
tinyflow-pnr> db = TinyBackEndDB(view)
tinyflow-pnr> db.read_verilog('../../asic/playground/03-tinyflow-synth/post-synth.v')
tinyflow-pnr> db.enable_gui()
tinyflow-pnr> floorplan_auto(db, view, 0.3, 1.0)
tinyflow-pnr> place(db, seed=0)
tinyflow-pnr> multi_route(db)
tinyflow-pnr> add_filler(db)
You should see filler cells appear in all empty sites in the GUI. Every site should now be either occupied by a standard cell or marked as filler.
Once you have implemented the fill algorithm, run the filler tests:
6. Testing
Once you have implemented all algorithms, run all of the back-end tests at once to verify everything works together.
Just because all of the tests pass does not mean your implementation is correct. You are encouraged to add more tests.
7. TinyFlow Front and Back End
The complete TinyFlow includes both the front-end and back-end. The front-end flow consists of four steps: two-state simulation, four-state simulation, synthesis, and fast-functional gate-level simulation. The back-end flow consists of three steps: place-and-route, design rule checking, and layout-vs-schematic. In this final part, we push the full adder design through all steps of the flow to illustrate going from Verilog RTL to a gate-level netlist to layout. We first manually run each step before showing how we can automate running the flow.
7.1. Front-End Manual Flow
We need to first run the front-end flow as in project 1B to generate the
gate-level netlist. We provide the Verilog RTL in rtl/FullAdder.v and a
basic testbench in rtl/test/FullAdder-test.v. These are the same as in
the project 1B. Run the two-state simulation with Verilator.
% cd $HOME/ece6745/project1-groupXX/asic/playground/01-verilator-rtlsim
% verilator --top Top --timing --binary -o FullAdder-test \
../../../rtl/FullAdder.v \
../../../rtl/test/FullAdder-test.v
% ./obj_dir/FullAdder-test
Now run four-state simulation with Icarus Verilog.
% cd $HOME/ece6745/project1-groupXX/asic/playground/02-iverilog-rtlsim
% iverilog -g2012 -o FullAdder-test \
../../../rtl/FullAdder.v \
../../../rtl/test/FullAdder-test.v
% ./FullAdder-test
Create a run.py script for synthesis.
Populate the script with the commands to perform optimized technology mapping and static timing analysis using your work Project 1B.
# Load the standard-cell front-end view and create front-end database
view = StdCellFrontEndView.parse_lib("../../../stdcells/stdcells-fe.yml")
db = TinyFrontEndDB(view)
# Read Verilog file into the database
db.read_verilog("../../../rtl/FullAdder.v")
# Optimized technology mapping
techmap(db, view)
# Static timing analysis with output load of 10fF
output_load = 10
sta(db, view, output_load)
# Check design for issues
db.check_design()
# Output reports
db.report_area()
db.report_timing()
db.report_summary()
# Write front-end database to a Verilog gate-level netlist
db.write_verilog("post-synth.v")
Now go ahead and run synthesis.
% cd $HOME/ece6745/project1-groupXX/asic/playground/03-tinyflow-synth
% ../../../tinyflow/tinyflow-synth -f run.py
Finally run fast-functional gate-level simulation to ensure the gate-level netlist is correct.
% cd $HOME/ece6745/project1-groupXX/asic/playground/04-iverilog-ffglsim
% iverilog -g2012 -o FullAdder-test \
../../../stdcells/stdcells.v ../03-tinyflow-synth/post-synth.v \
../../../rtl/test/FullAdder-test.v
% ./FullAdder-test
7.2. Place and Route
Let's first run the back-end flow interactively, and then we will create
a corresponding run.py script. Start the place-and-route REPL.
% cd $HOME/ece6745/project1-groupXX/asic/playground/05-tinyflow-pnr
% ../../../tinyflow/tinyflow-pnr
Now load the standard view, create the tiny back-end database, and start the GUI.
tinyflow-pnr> view = StdCellBackEndView(
be = '../../../stdcells/stdcells-be.yml',
gds = '../../../stdcells/stdcells.gds',
rcx_sp = '../../../stdcells/stdcells-rcx.sp',
)
tinyflow-pnr> db = TinyBackEndDB(view)
tinyflow-pnr> db.enable_gui()
Read the gate-level netlist Verilog file into the database.
Create an automated floorplan.
Place and route the design and insert filler cells.
Check the design for issues and output a summary report.
If the design is not able to route then you might need to try replacing the design with a different seed and/or decreasing the density during automated floorplanning. Write the tiny back-end database to a SPICE netlist and GDS layout file and exit the REPL.
tinyflow-pnr> db.write_spice('post-pnr-rcx.sp')
tinyflow-pnr> db.write_gds('post-pnr.gds')
tinyflow-pnr> exit()
You can now view the final layout using Klayout.
Choose Display > Top Level Only to hide the internals of each standard cell and show just the placement and routing of the standard cells. Try hiding and showing different metal layers to better visualize the routing. Spend some time appreciating all your hard work!
Create a run.py script to make it easier to run place-and-route.
Populate the script with the above commands. Note that we do not enable
the GUI when using a run.py script. Now rerun place-and-route using
this run.py script.
% cd $HOME/ece6745/project1-groupXX/asic/playground/05-tinyflow-pnr
% ../../../tinyflow/tinyflow-pnr -f run.py
7.3. Design Rule Checking
Although we have already ensured our standard cells are DRC clean, we also need to check to ensure the final layout for entire full adder is DRC clean. We can do that interactively using Klayout or using the command line like this:
% cd $HOME/ece6745/project1-groupXX/asic/playground/06-tinyflow-drc
% tinyflow-batch-drc ../05-tinyflow-pnr/post-pnr.gds
7.4. Layout vs. Schematic
Similarly, although we have already ensured our standard cells are LVS clean, we also need to check to ensure the final layout for entire full adder is LVS clean. We can do that interactively using Klayout or using the command line like this:
% cd $HOME/ece6745/project1-groupXX/asic/playground/07-tinyflow-lvs
% tinyflow-batch-lvs ../05-tinyflow-pnr/post-pnr.gds ../05-tinyflow-pnr/post-pnr-rcx.sp
7.5. Tiny Automated Flow
In the previous sections, we manually commands entering commands for each
tool to take a design from RTL to layout. Using run.py scripts can
help, and we could even create run Bash scripts to further automate the
flow. However, truly agile hardware design demands more sophisticated
automation to simplify rapidly exploring the design space of one or more
designs. In this section, we will introduce a tool called pyhflow which
takes as input step templates and a design YAML and generates appropriate
flow scripts.
pyflow is based on the idea of step templates which are located in the asic/steps directory.
The directory layout should look as follows.
.
├── 01-verilator-rtlsim
│ └── run
├── 02-iverilog-rtlsim
│ └── run
├── 03-tinyflow-synth
│ ├── run
│ └── run.py
├── 04-iverilog-ffglsim
│ └── run
├── 05-tinyflow-pnr
│ ├── run
│ └── run.py
├── 06-klayout-drc
│ └── run
├── 07-klayout-lvs
│ └── run
└── 08-summarize-results
└── run
Each step is a directory with a run script and possibly other scripts.
The key difference from the run.py and run scripts we used
previously, is that these scripts are templated using the Jinja2
templating system:
Open the run.py script in the 03-tinyflow-synth step template.
Notice how the run.py script is templated based on the design name.
The {{ }} directive is the standard syntax for template variable
substitution using Jinja2. The pyhflow program takes as input a design
YAML file which specifies how to fill in these template variables. Take a
look at the provided design YAML for the full ader.
The contents should look as follows.
steps:
- 01-verilator-rtlsim
- 02-iverilog-rtlsim
- 03-tinyflow-synth
- 04-iverilog-ffglsim
- 05-tinyflow-pnr
- 06-klayout-drc
- 07-klayout-lvs
- 08-summarize-results
top_dir : ../../..
design_name : FullAdder
test : FullAdder-test
techmap : optimized
place : optimized
floorplan : auto
floorplan_density : 0.5
floorplan_aspect_ratio : 1.0
This design YAML file specifies the generated flow should use eight steps and also includes the design name, test name, and floorplan information. You can choose to use your unoptimized technology mapping algorithm and simply random placement as a baseline. All pyhflow does is use the YAML file to figure out what to substitute into the templated steps and then copy the run scripts into the current working directory. You can also override parameters on pyhflow command line.
Let's now use pyhflow to easily automate the entire process of pushing a full adder through the tiny flow.
% cd $HOME/ece6745/project1-groupXX/asic
% mkdir -p build-fa
% cd build-fa
% pyhflow ../designs/fa.yml
% ./01-verilator-rtlsim/run
% ./02-iverilog-rtlsim/run
% ./03-tinyflow-synth/run
% ./04-iverilog-ffglsim/run
% ./05-tinyflow-pnr/run
% ./06-klayout-drc/run
% ./07-klayout-lvs/run
% ./08-summarize-results/run
pyhflow also creates a run-flow script which will run all the steps
further simplifying the process.
% cd $HOME/ece6745/project1-groupXX/asic
% mkdir -p build-fa
% cd build-fa
% pyhflow ../designs/fa.yml
% ./run-flow
timestamp = 2026-02-18 16:27:36
design_name = FullAdder
techmap = optimized
place = optimized
rtlsim_2state = passed
rtlsim_4state = passed
synth_num_stdcells = 20
synth_area = 38912 lambda^2
synth_critical_path = 319.604 ps
ffglsim = passed
pnr_area = 1069.978 um^2
pnr_num_placed_cells = 20/20
pnr_num_routed_nets = 23/23
pnr_check_design = passed
drc_check_design = passed
lvs_check_design = passed
Now try taking the four-bit ripple-carry adder from RTL to a gate-level netlist to layout using the tiny automated flow.
% cd $HOME/ece6745/project1-groupXX/asic
% mkdir -p build-addrc-4b
% cd build-addrc-4b
% pyhflow ../designs/addrc-4b.yml
% ./run-flow
timestamp = 2026-02-18 16:28:09
design_name = AdderRippleCarry_4b
techmap = optimized
place = optimized
rtlsim_2state = passed
rtlsim_4state = passed
synth_num_stdcells = 77
synth_area = 158208 lambda^2
synth_critical_path = 814.604 ps
ffglsim = passed
pnr_area = 2575.411 um^2
pnr_num_placed_cells = 77/77
pnr_num_routed_nets = 85/85
pnr_check_design = passed
drc_check_design = passed
lvs_check_design = passed
8. TinyFlow Tapeout
Once your entire Tiny Flow is working, you can now implement a project of your choice as a Tiny Flow block. Each Tiny Flow block is limited to 100x100um with exactly eight inputs pins and exactly eight output pins in a fixed floorplan. The course staff will the compose all of the Tiny Flow blocks into a single chip for a shared tapeout on TSMC 180nm. Each group will have a chance to test their Tiny Flow block on the shared tapeout in the fall. Here are some project ideas:
- 3-bit ALU (add, sub, lt, gt)
- 8-bit comparator (outputs indicate lt, gt, eq)
- 8-bit popcount (output is number of ones in the input)
- 3-bit multiplier (output is 6-bit product, 4-bit multiplier is probably too big)
- 4-bit variable shifter (1-bit indicates left/right, 2-bits indicate amount to shift)
- 4-bit variable rotator (1-bit indicates left/right, 2-bits indicate amount to shift)
- 8-bit parity generator
- 4-bit binary to seven-segment display
- 8-bit absolute value
- 4-bit min-max unit (top 4-bits of output is max, bottom 4-bits of output is min)
- 3-bit median of three
- hamming(7,4) encoder
- 8-bit S-box
Students can implement any project they want as long as it meets the following requirements:
- no unused inputs, no undriven outputs
- exhaustive Verilog test bench
- passes all tests for 2-state RTL simulation
- passes all tests for 4-state RTL simulation
- passes generic gates are technology mapped
- passes synthesis check design
- passes all tests for fast-function gate-level simulation
- uses standard 100x100um fixed floorplan
- all cells are successfully placed
- all nets are successfully placed
- passes pnr check design
- passes DRC check design
- passes LVS check design
We have included an example of what a Tiny Flow block might look like in
your repo. Take a look at the code in TapeoutExample.v. Notice that
all inputs must be used and all outputs must be driven! Let's say you
do use in0 but you do not use in7. Then you could do something like this:
This way in7 will be used but will not impact the output. If you do not use an output then simply assign one of the outputs you do use to the unused output to ensure all outputs are always driven. If your Tiny Flow block has unused inputs and/or undriven outputs it will not be included on the shared tapeout.
You can try pushing this example through your Tiny Flow as follows.
% cd $HOME/ece6745/project1-groupXX/asic
% mkdir -p build-tapeout-example
% cd build-tapeout-example
% pyhflow ../designs/tapeout-example.yml
% ./run-flow
timestamp = 2026-02-18 20:43:29
design_name = TapeoutExample
techmap = optimized
place = optimized
rtlsim_2state = passed
rtlsim_4state = passed
synth_num_stdcells = 109
synth_area = 207360 lambda^2
synth_critical_path = 971.452 ps
ffglsim = passed
pnr_area = 9729.331 um^2
pnr_num_placed_cells = 109/109
pnr_num_routed_nets = 117/117
pnr_check_design = passed
drc_check_design = passed
lvs_check_design = passed

Notice that the block is 100x100um. The eight input pins are in fixed locations along the left edge and the eight output pins are in fixed locations on the right edge.
You must implement your Tiny Flow project in TapeoutGroupXX where XX
is your group number. To include your Tiny Flow project on the TinyFlow
tapeout you must copy the final post-pnr layout and extracted schematic
into this subdirectory, add them to your repository, and push them to
GitHub like this.
% cd $HOME/ece6745/project1-groupXX/asic
% mkdir build-tapeout-groupXX
% cd build-tapeout-groupXX
% pyhflow ../designs/tapeout-groupXX.yml
% cp 05-tinyflow-pnr/post-pnr.gds ../tapeout
% cp 05-tinyflow-pnr/post-pnr-rcx.sp ../tapeout
% git add ../tapeout
% git commit -m "tapeout ready"
% git push
Where XX is your group number.
9. API Reference
This section provides a quick reference for the classes and methods you will use when implementing the back-end algorithms.
Coordinate Systems
There are two coordinate systems used in the back end:
-
Site grid uses
(row, col)coordinates. Each cell occupies one or more sites in a row. Cell placement uses site grid coordinates (e.g.,cell.set_place(row, col)). -
Routing grid uses
(i, j, k)coordinates.icorresponds to the row direction (vertical),jcorresponds to the column direction (horizontal), andkis the metal layer (1=M1, 2=M2, etc.). The routing grid is finer than the site grid — there are multiple routing tracks per site row in theidirection. Pin locations and I/O port placement use routing grid coordinates (e.g.,pin.get_node()returns(i, j, k)).
7.1. StdCellBackEndView (view)
The library view provides technology information (site dimensions, layer info, cell definitions).
| Method/Attribute | Returns | Description |
|---|---|---|
view.get_site() |
Site |
Get the site definition |
view.get_site().get_width() |
int |
Site width in lambda |
view.get_site().get_height() |
int |
Site height in lambda |
view.get_cell(ref) |
Cell |
Get library cell by reference name |
view.get_cell(ref).get_width() |
int |
Cell width in lambda |
view.get_layer('metal1') |
Layer |
Get a metal layer |
view.get_layer(name).get_track_pitch() |
int |
Track pitch in lambda |
view.get_lambda_um() |
float |
Lambda unit in micrometers (0.09) |
7.2. TinyBackEndDB (db)
The backend database manages cells, nets, I/O ports, and the site and routing grids.
Floorplan and grid:
| Method/Attribute | Returns | Description |
|---|---|---|
db.floorplan(num_rows, num_cols) |
None | Initialize site grid (units: sites) |
db.get_num_rows() |
int |
Number of rows in site grid |
db.get_num_cols() |
int |
Number of sites per row |
db.get_grid_size_i() |
int |
Routing grid size in i (vertical tracks) |
db.get_grid_size_j() |
int |
Routing grid size in j (horizontal tracks) |
db.get_core() |
list[list[Site]] |
2D site grid |
Cells:
| Method/Attribute | Returns | Description |
|---|---|---|
db.get_cells() |
tuple[Cell] |
Get all cell instances |
db.get_cell(name) |
Cell |
Get a cell by instance name |
Nets:
| Method/Attribute | Returns | Description |
|---|---|---|
db.get_nets() |
tuple[Net] |
Get all nets |
db.get_net(name) |
Net |
Get a net by name |
I/O ports:
| Method/Attribute | Returns | Description |
|---|---|---|
db.get_ioport(name) |
IOPort |
Get an I/O port by name |
db.get_in_ports() |
tuple[IOPort] |
Get all input ports |
db.get_out_ports() |
tuple[IOPort] |
Get all output ports |
Placement helpers:
| Method/Attribute | Returns | Description |
|---|---|---|
db.get_placement() |
dict |
Get current placement as {name: (row, col)} |
db.apply_placement(dict) |
None | Apply a saved placement (unplaces all first) |
Routing:
| Method/Attribute | Returns | Description |
|---|---|---|
db.get_occupancy(i, j, k) |
Net or None |
Get the net occupying a routing node, or None if free |
db.clear_all_routing() |
None | Clear all routing and restore pin/IO occupancy |
db.set_filler_count(count) |
None | Set filler cell count |
7.3. Cell
| Method/Attribute | Returns | Description |
|---|---|---|
cell.get_name() |
str |
Instance name |
cell.get_width() |
int |
Width in sites |
cell.get_place() |
list |
Current placement [row, col] (site coords) |
cell.is_placed() |
bool |
Whether the cell is placed |
cell.set_place(row, col) |
None | Place cell at site coordinates |
cell.set_unplace() |
None | Remove cell from placement |
cell.pins |
list[Pin] |
List of pins on this cell |
7.4. Pin
| Method/Attribute | Returns | Description |
|---|---|---|
pin.get_name() |
str |
Pin name |
pin.get_node() |
(i, j, k) |
Routing grid coordinates (None if unplaced) |
pin.net |
Net |
The net this pin belongs to |
7.5. IOPort
IOPort is a subclass of Pin. It represents an I/O port at the chip boundary.
| Method/Attribute | Returns | Description |
|---|---|---|
ioport.place(i, j) |
None | Place at routing grid edge coordinates |
ioport.get_node() |
(i, j, k) |
Routing grid coordinates (k = 2, i.e., M2) |
ioport.name |
str |
Port name |
7.6. Net
| Method/Attribute | Returns | Description |
|---|---|---|
net.net_name |
str |
Net name |
net.pins |
list[Pin] |
List of connected pins (includes IOPorts) |
net.add_route_segments(lines) |
None | Commit a list of Line segments to the routing grid |
7.7. Line
A Line represents a wire segment between two adjacent nodes in the
routing grid.
| Method/Attribute | Returns | Description |
|---|---|---|
Line(start, end) |
Line |
Create a segment from (i,j,k) to (i,j,k) |
line.start |
(i,j,k) |
Start node |
line.end |
(i,j,k) |
End node |
7.8. Site
Sites are accessed from db.get_core() which returns a 2D list
indexed as core[row][col].
| Method/Attribute | Returns | Description |
|---|---|---|
site._get_occupancy() |
Cell or None |
Get the cell occupying this site, or None if empty |
site.is_fill() |
bool |
Whether this site is marked as filler |
site.add_filler() |
None | Mark this site as filler |
