ECE 6745 Project 1: TinyFlow Tape-Out
TinyFlow Standard Cells

In this project, students will build their own TinyFlow, a very simple standard-cell-based flow. They will develop four standard cells in TSMC 180nm and the corresponding standard cell behavioral, schematic, layout, extracted schematic, front-end, and back-end views. They will then implement simple algorithms for synthesis (technology mapping via tree covering, static timing analysis) and place-and-route (simulated annealing, 3D maze routing). Finally they will combine this work with open-source Verilog RTL and gate-level simulators and an open-source LVS/DRC tool to create the complete TinyFlow. Even though their TinyFlow will only support a very small combinational subset of Verilog, this project still gives students a unique hands-on opportunity to appreciate every step required in more sophisticated commercial tools. Each group will create a tiny block using their TinyFlow and these blocks will be aggregated into a single unified tape-out on the TSMC 180nm technology node.

The project includes three parts:

  • Part A: TinyFlow Standard Cells
  • Part B: TinyFlow Front-End
  • Part C: TinyFlow Back-End

All parts must be done in a group of 2-3 students. You can confirm your group on Canvas (Click on People, then Groups, then search for your name to find your project group).

All students must contribute to all parts!

It is not acceptable for one student to do all of Part A and a different student to do all of part B. It is not acceptable for one student to exclusively work on the layout while the other student exclusively works on SPICE characterization. All students must contribute to all parts. The instructors will also survey the Git commit log on GitHub to confirm that all students are contributing equally. If you are using a "pair programming" style, then both students must take turns using their own account so both students have representative Git commits. Students should create commits after finishing each step of the project, so their contribution is clear in the Git commit log. A student's whose contribution is limited as represented by the Git commit log will receive a significant deduction to their project score.

This handout assumes that you have read and understand the course tutorials and that you have attended the lab sections. To get started, use VS Code to log into a specific ecelinux server, source the setup script, and clone your remote repository from GitHub:

% source setup-ece6745.sh
% mkdir -p ${HOME}/ece6745
% cd ${HOME}/ece6745
% git clone git@github.com:cornell-ece6745/project1-groupXX
% cd project1-groupXX
% tree

where XX should be replaced with your group number. You can both pull and push to your remote repository. If you have already cloned your remote repository, then use git pull to ensure you have any recent updates before working on your lab assignment.

% cd ${HOME}/ece2300/groupXX
% git pull
% tree

where XX should be replaced with your group number. Your repo contains the following files for the views and simulation scripts for each standard cell:

.
└── stdcells/
    ├── verilog-sim/
    │   ├── AOI21X1-sim.v
    │   ├── INVX1-sim.v
    │   ├── NAND2X1-sim.v
    │   ├── NOR2X1-sim.v
    │   ├── TIEHI-sim.v
    │   └── TIELO-sim.v
    ├── stdcells-be.yml
    ├── stdcells-fe.yml
    ├── stdcells-rcx.yml
    ├── stdcells.gds
    ├── stdcells.sp
    └── stdcells.v

1. Standard-Cell Library

In this part, you will need to implement the following seven standard cells:

  • INVX1: Canonical minimum-sized inverter, should implement logic function \(Y = \overline{A}\), should have same drive strenght as INVX1

  • NAND2X1: Two-input NAND gate implementing logic function \(Y = \overline{AB}\), should have same drive strenght as INVX1

  • NOR2X1: Two-input NOR gate implementing logic function \(Y = \overline{A + B}\), should have same drive strength as INVX1

  • AOI21X1: Three-input AND-OR-INV gate implementing logic function \(Y = \overline{AB + C}\), should have same drive strength as INVX1

  • TIEHI: Tie high cell, connects output to logic one, should use a weak PMOS to pull-up the output to VDD, gate of weak PMOS should be connected to a diode-connected NMOS

  • TIELO: Tie low cell, connects output to logic zero, should use a weak NMOS to pull-down the output to ground, gate of weak NMOS should be connected to a diode-connected PMOS

  • FILL: One-track wide filler cell, used to fill in blank space between standard cells

For each standard cell we must create the following six views:

  • Behavioral View: Logical function of the standard cell, used for gate-level simulation

  • Schematic View: Transistor-level representation of standard cell, used for functional verification and layout-vs-schematic

  • Layout View: Layout of standard cell, used for design-rule checking (DRC), layout-vs-schematic (LVS), resistance/capacitance extraction (RCX), and fabrication

  • Extracted Schematic View: Transistor-level representation with extracted resistance and capacitances, used for layout-vs-schematic (LVS) and timing characterization

  • Front-End View: High-level information about standard cell including area, input capacitance, logical function, and delay model; used in synthesis

  • Back-End View: Low-level information about standard cell including height, width, and pin locations; used in placement and routing

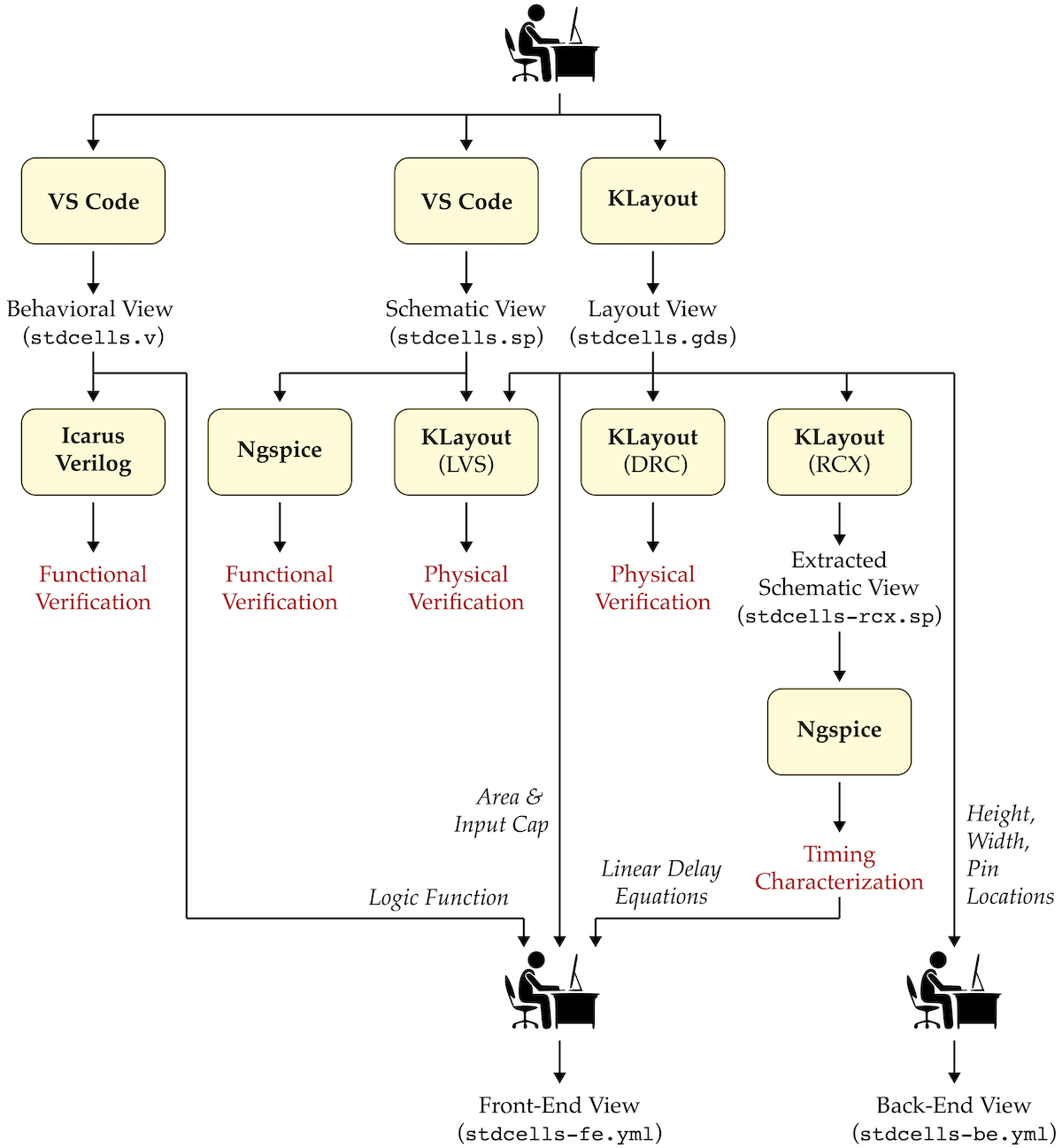

We will be using the following TinyFlow standard-cell design flow.

We will by begin by writing the behavioral view in Verilog and verifying its functionality using a Verilog test bench and Icarus Verilog. We will then write the schematic view in SPICE and verify its functionality using a SPICE test bench and Ngspice. We will then use the KLayout design editor to create the layout, perform a design-rules check (DRC), perform a layout vs. schematic check (LVS), and generate an extracted schematic. We will re-simulate the extracted transistor-level schematic using Ngspice to characterize the propagation delay for different load capacitances in order to create a linear delay model. Finally, we will write the front-end and back-end views for our standard-cells in two YAML files.

We recommend implementing all six views for one standard cell before moving on to the next standard cell. Consider having each student implement all six views for different standard cells. Follow the same steps as in lab 2 to implement each standard cell.

2.1. Behavioral View

Think critically about the truth table for each standard cell. Are you testing all possible inputs?

2.2. Schematic View

Think critically about transistor sizing. You should aim to create balanced cells that have equivalent drive as the canonical minimum-sized 2:1 inverter. You should aim to have roughly equal rise and fall propagation delays.

For standard cells with more than one NMOS and PMOS. You will need to add a value after the M_N and M_P identifiers in your Spice, e.g. M_N1, M_N2, M_P1, M_P2. Each transistor should have a unique identifier.

2.3. Layout View

Draw stick diagrams for your layouts before drawing on KLayout. Try to route connections to minimize the number of sites your standard cell takes up, and then shrink it to the minimum number of sites. When switching to a new cell in the KLayout GUI, make sure to right-click it from the "Cells" window on the left and select "Show As New Top" as discussed in the lab 2 handout. Be sure to reference the lab 2 handout to learn how to run batch DRC and LVS scripts for all of your standard cells without having to open the KLayout GUI!

2.4. Extracted Schematic View

Ensure your propagation delay measurements are reasonable. You should be anywhere from 10s of ps to 100s of ps. Be sure to double-check your extracted schematic by re-simulating it. For multi-input cells, tinyflow-ngspice will print out multiple input->output rising and falling transition times, you will want to pick the maximum out of all of these times to use for the delay value for the given load capacitance.

2.5. Front-End View

Think critically about the INV-NAND patterns for each cell. There may be multiple!

2.6. Back-End View

Be sure to update pin locations here if you change anything in your layout.

3. Project Submissions

We will be running various commands to test each aspect of your standard cells:

  • Behavioral view testbenches: ensure all of your testbenches pass for all values of your cells' corresponding truth tables
  • Schematic view testbenches: we will run tinyflow-ngspice for various values of cload between 0f and 100f for all truth table values for your cells pre-extracted Spice schematics. We will also verify your Spice schematics include properly-sized transistors for balanced drive
  • Layout view: we will run DRC and LVS batch scripts to ensure all of your cells are DRC and LVS-clean. We will also verify your layouts include properly-sized transistors for balanced drive
  • Extracted schematic view: we will re-simulate your extracted Spice views using tinyflow-ngspice with all truth table values for your standard cells. We will also ensure your delay values are within reason as discussed above (10s to 100s of ps)
  • Front-end view: we will check your front-end view values to ensure they are reasonable and match your other views
  • Back-end view: we will check your back-end view values to ensure they are reasonable and match your other views
