ECE 6745 Lab 9: Commercial Chip Flow

In this lab, we will be learning about chip-level RTL design and the commercial chip ASIC flow. In the previous lab, we pushed designs through the block-level ASIC flow which synthesizes, places, and routes a design but does not include the I/O pads, seal ring, or fill structures needed for tapeout. In this lab, we extend that block flow into a full chip-level flow.

  • Chip-Level RTL Design: A real chip needs I/O cells around the perimeter for signal buffering, ESD protection, and level shifting between core and I/O voltage domains. We will study how the GCD accelerator is wrapped with I/O pads, a two-flop reset synchronizer, and an SPI minion to create a chip-level design. This is the same pattern you will use to wrap your own accelerator for Project 2.

  • Padring, Seal Ring, and Fill: Tapeout requires physical structures beyond the core logic. The padring places I/O cells and bond pads around the chip perimeter. The seal ring is a guard structure along the die edge that prevents cracks from wafer dicing from propagating into the active circuit area. Metal, poly, and via fill insert dummy patterns to maintain uniform density for CMP (chemical-mechanical polishing) planarity.

  • Chip-Level Verification: The chip flow extends DRC to include wirebond and metal-fuse checks, and LVS must now account for I/O cell SPICE models. The chip flow has 14 steps compared to the block flow's 11 steps.

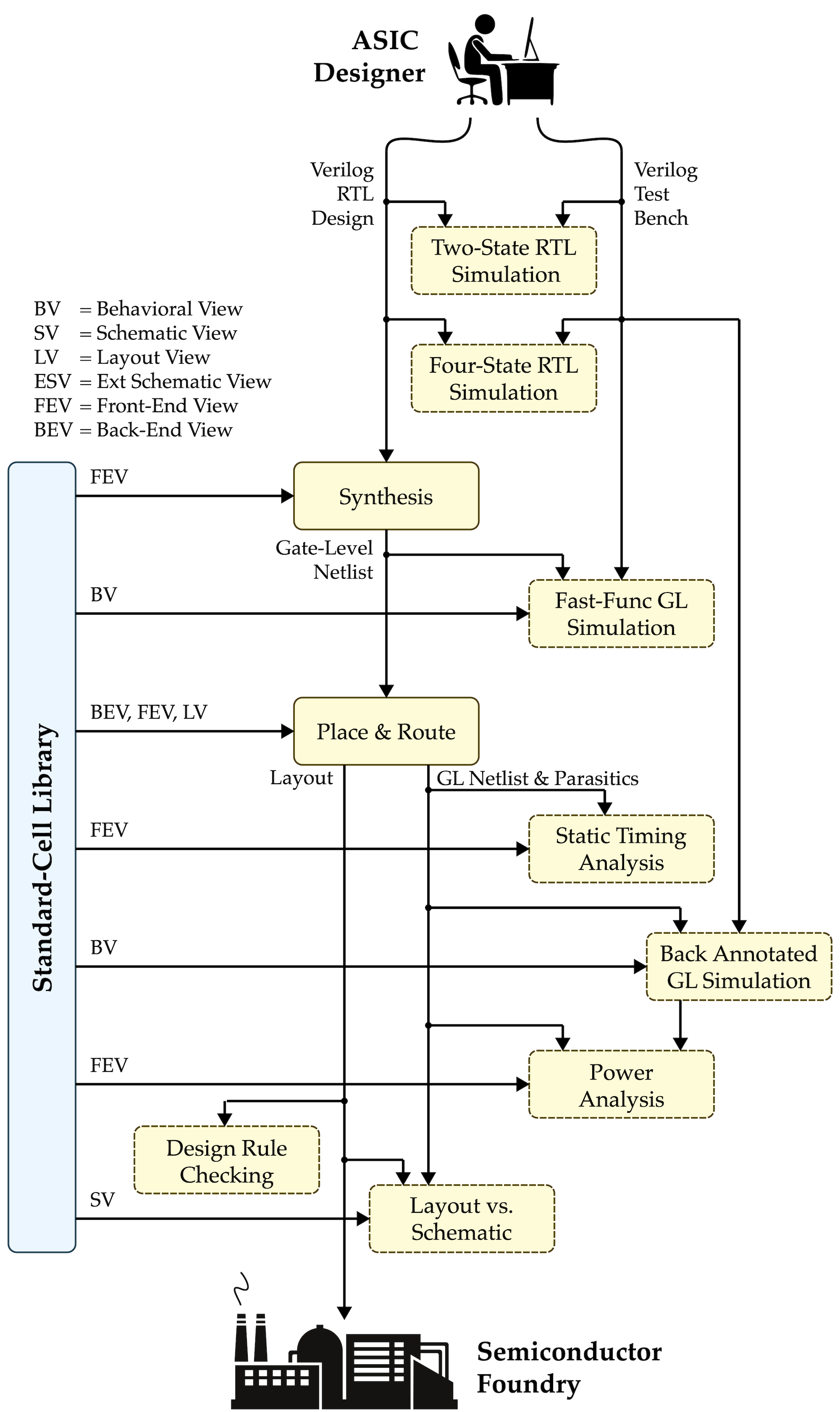

The following diagrams illustrate the primary tools we have already seen in the previous labs. Notice that the ASIC tools all require various views from the standard-cell library.

We will be adding additional steps for the padring, seal ring, and fill. Here is list of all of the steps we will be using in the chip flow.

00-padring-gen
01-pymtl-rtlsim
02-synopsys-vcs-rtlsim
03-synopsys-dc-synth
04-synopsys-vcs-ffglsim
05-cadence-innovus-pnr
06-synopsys-pt-sta
07-synopsys-vcs-baglsim
08-synopsys-pt-pwr
09-mentor-calibre-seal
10-mentor-calibre-fill
11-mentor-calibre-drc
12-mentor-calibre-lvs
13-summarize-results

Extensive documentation is provided by Synopsys, Cadence, and Siemens for these ASIC tools. We have organized this documentation and made it available to you on the public course webpage:

1. Logging Into ecelinux

Students MUST work in pairs!

You MUST work in pairs for this lab, as having too many instances of Innovus open at once can cause the ecelinux servers to crash. So find a partner and work together at a workstation to complete today's lab.

Follow the same process as previous labs. Find a free workstation and log into the workstation using your NetID and standard NetID password. Then complete the following steps.

  • Start VS Code
  • Install the Remote-SSH extension, Surfer, Python, and Verilog extensions
  • Use View > Command Palette to execute Remote-SSH: Connect Current Window to Host...
  • Enter netid@ecelinux-XX.ece.cornell.edu where XX is an ecelinux server number
  • Use View > Explorer to open your home directory on ecelinux
  • Use View > Terminal to open a terminal on ecelinux
  • Start MS Remote Desktop

Now use the following commands to clone the repo we will be using for today's lab.

% source setup-ece6745.sh
% source setup-gui.sh
% mkdir -p ${HOME}/ece6745
% cd ${HOME}/ece6745
% git clone git@github.com:cornell-ece6745/ece6745-lab9 lab9
% cd lab9
% tree

To make it easier to cut-and-paste commands from this handout onto the command line, you can tell Bash to ignore the % character using the following command:

% alias %=""

2. GCD Accelerator Block

We need to make sure our GCD accelerator is functionally correct and can go through the block flow before we attempt to use the chip flow. Let's start by making sure our accelerator is fully functional using RTL simulation.

% mkdir -p ${HOME}/ece6745/lab9/sim/build
% cd ${HOME}/ece6745/lab9/sim/build
% pytest ../lab5_xcel/test/GcdXcel_test.py

Now let's make sure our accelerator can go through the block flow.

% mkdir -p ${HOME}/ece6745/lab9/asic/build-gcd-xcel
% cd ${HOME}/ece6745/lab9/asic/build-gcd-xcel
% pyhflow ../designs/lab5-gcd-xcel.yml
% ./run-flow

 timestamp           = 2026-03-20 10:47:45
 design_name         = GcdXcel_noparam
 clock_period        = 3.0
 vcs-rtlsim          = 18/18 passed
 synth_setup_slack   = 0.3217 ns
 synth_num_stdcells  = 461
 synth_area          = 9112.275 um^2
 ffglsim             = 18/18 passed
 pnr_setup_slack     = 0.0442 ns
 pnr_hold_slack      = 0.0132 ns
 pnr_clk_ins_src_lat = 0 ns
 pnr_num_stdcells    = 527
 pnr_area            = 10146.214 um^2
 sta_setup_slack     = 0.0500 ns
 sta_hold_slack      = 0.0140 ns
 baglsim             = 18/18 passed
 main_drc_results    = no violations found
 antenna_drc_results = no violations found
 lvs                 = no violations found

 GcdXcel_noparam_gcd-xcel-sim-rtl-random
  - exec_time = 3220 cycles
  - exec_time = 9660.0000 ns
  - power     = 2.0170 mW
  - energy    = 19.4842 nJ

 GcdXcel_noparam_gcd-xcel-sim-rtl-small
  - exec_time = 458 cycles
  - exec_time = 1374.0000 ns
  - power     = 2.9820 mW
  - energy    = 4.0973 nJ

 GcdXcel_noparam_gcd-xcel-sim-rtl-zeros
  - exec_time = 157 cycles
  - exec_time = 471.0000 ns
  - power     = 3.2430 mW
  - energy    = 1.5275 nJ

3. Chip-Level RTL Design

Now we are ready to turn our accelerator into a complete chip. We need to integrate the accelerator with I/O cells, a reset synchronizer, and an SPI minion to create a complete chip-level design. Here is a block-level diagram of the chip.

3.1. I/O Cells

Each IO cell includes some ciruitry along with a bond pad which is a large rectangle of top-level metal which will be exposed during the chip fabrication process. Then during packaging we can use bond wires to connect the package to the bond pad. These are the key IO cells we will be using:

  • Signal IO Cell (PDDW0812CDG)
  • Clock IO Cell (PDDW0812SCDG)
  • IO Vdd (PVDD2CDG)
  • Core Vdd (PVDD1CDG)
  • Common Ground (PVSS3CDG)

Let's take a look at the databook for the IO cells.

% evince ${TSMC_180NM}/iocells.pdf

Find the entry for the signal IO cell we will be using. Notice that these are bidirectional IO cells (i.e., the same cell is can be used as both an input and as an output). Then take a look at the layout view for this cell.

% klayout -l ${TSMC_180NM}/klayout.lyp ${TSMC_180NM}/iocells.gds

Take a look at the I/O cell behavioral models we will be using.

% cd ${HOME}/ece6745/lab9/sim/iocells
% code InputIO.v

Here is the InputIO module:

module iocells_InputIO
(
  input  logic off_chip,
  output logic on_chip
);

  `ifndef SYNTHESIS
    assign on_chip = off_chip;
  `else
    PDDW0812CDG io
    (
      .I   (1'b0),
      .OEN (1'b1),
      .PAD (off_chip),
      .C   (on_chip),
      .IE  (1'b1),
      .PE  (1'b1),
      .DS  (1'b0)
    );
  `endif

endmodule

The off_chip port will be connected to the pad, bond wire, and package off chip. The on_chip port will be connected to the logic within the chip.

The key pattern here is ifndef SYNTHESIS. During simulation, the pad is a simple wire passthrough (assign on_chip = off_chip). During synthesis, it instantiates the real I/O cell for TSMC 180nm. The I/O cell pins are:

  • PAD: The external bond pad connection
  • C: The core-side connection
  • I: Output data (driven by on-chip logic)
  • OEN: Output enable (active low); set to 1'b1 for input mode
  • IE: Input enable; set to 1'b1 to enable the input buffer
  • PE: Pull enable; set to 1'b1 to enable a pull-up/pull-down
  • DS: Drive strength select

The OutputIO module is similar but configures the cell in output mode: OEN is 1'b0 (output enabled), I drives the on-chip signal out, and IE is 1'b0 (input buffer disabled).

When floorplanning the chip we will need to place these IO cells in a ring around the outside of the chip into what is called a padring.

3.2. Chip Top Module

You now need to implement the top-level module for the chip.

% cd ${HOME}/ece6745/lab9/sim/lab5_xcel
% code GcdXcelChip.v

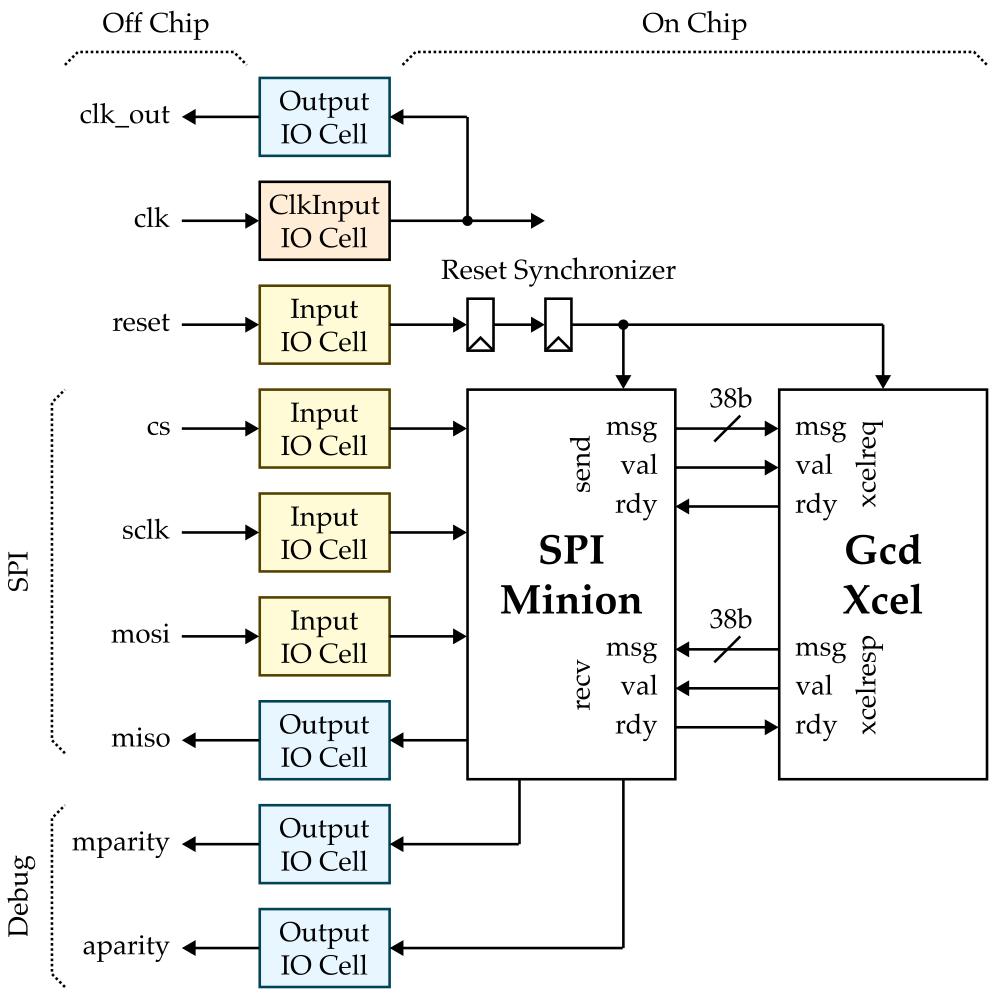

Your implementation should have four sections:

  • IO Cells: instanatiate nine IO cells, one for each top-level port
  • Clock and Reset: connect clk to clk_out and add a reset synchronizer
  • SPI Minion: instantiate the SPI minion and connect it to cs, sclk, mosi, miso, and the GCD accelerator
  • GCD Accelerator: instantiate the GCD accelerator and connect it to the SPI minion

Be sure to use the correct IO cell for each top-level port:

  • ClkInputIO: use for the clock input
  • InputIO: use for all top-level input ports
  • OutputIO: use for all top-level output ports

You must use very specific names for each IO cell! Name the IO cells as follows:

  • clk_io
  • reset_io
  • cs_io
  • sclk_io
  • mosi_io
  • miso_io
  • mparity_io
  • aparity_io
  • clk_out_io

The off-chip reset signal arrives asynchronously relative to the on-chip clock. Sampling an asynchronous signal with a single flip-flop can cause metastability -- the flip-flop output can settle to an unpredictable value. The two-flop synchronizer reduces the probability of metastability to a negligible level by giving the first flop's output a full clock cycle to resolve before the second flop samples it. All downstream logic should use the synchronized version of the reset signal. You can implement the synchronizer using an always_ff block.

Configure the SPI Minion parameters as shown below.

  spi_Minion
  #(
    .BIT_WIDTH (38),
    .N_SAMPLES (4)
  )

The SPI minion will produce a 38-bit message which is exactly the correct amount for an accelerator request message (i.e., 1 bit for type, 5 bits for the accelerator register specifier, 32 bits for data). An accelerator response message is only 33 bits (i.e., 1 bit for type, 32 bits for data) so you will need to zero extend the accelerator response message when connecting it to the SPI minion.

Show a TA your top-level implementation!

Once you have finished, show a TA your top-level implementation to get feedback before continuing.

3.3. Chip Testing

Once you have finished implementing the chip top-level module, we of course need to test it. Take a look at the PyMTL wrapper for the chip module:

% cd ${HOME}/ece6745/lab9/sim/lab5_xcel
% code GcdXcelChip.py

from pymtl3 import *
from pymtl3.passes.backends.verilog import *

class GcdXcelChip( VerilogPlaceholder, Component ):
  def construct( s ):
    s.cs      = InPort (1)
    s.sclk    = InPort (1)
    s.mosi    = InPort (1)
    s.miso    = OutPort(1)
    s.mparity = OutPort(1)
    s.aparity = OutPort(1)
    s.clk_out = OutPort(1)

Take a look at the chip-level test harness:

% cd ${HOME}/ece6745/lab9/sim/lab5_xcel/test
% code GcdXcelChip_test.py

The test harness structure is:

  StreamSourceFL    SpiMasterFL      GcdXcelChip      SpiMasterFL    StreamSinkFL
  (XcelReqMsg) --> (bit-bang SPI) --> (SPI wires) --> (SPI wires) --> (XcelRespMsg)

The key idea is to reuse the same tests you used to test your accelerator in isolation to test the chip. We simply need to put the accelerator request/response messages for each test in the source and sinks and then the SpiMasterFL will take care of converting these messages into SPI transactions.

class TestHarness( Component ):

  def construct( s, ChipType ):

    s.src    = StreamSourceFL( XcelReqMsg )
    s.sink   = StreamSinkFL( XcelRespMsg )
    s.master = SpiMasterFL()
    s.chip   = ChipType

    # src -> SpiMasterFL (xcel req)
    s.src.ostream //= s.master.recv

    # SpiMasterFL -> sink (xcel resp)
    s.sink.istream //= s.master.send

    # SpiMasterFL <-> chip (SPI wires)
    s.master.cs   //= s.chip.cs
    s.master.sclk //= s.chip.sclk
    s.master.mosi //= s.chip.mosi
    s.master.miso //= s.chip.miso

The SpiMasterFL (in sim/spi/SpiMasterFL.py) is a functional-level model that bit-bangs the SPI protocol: it takes xcel request messages, serializes them into SPI transactions, and deserializes the SPI responses back into xcel response messages. Again the exact same logical tests work at both the functional level (direct xcel interface) and the chip level (over SPI). The only difference is the test harness: the chip test interposes the SpiMasterFL between the source/sink and the design under test. This is an important design pattern -- you should reuse your existing FL test cases when creating your own chip-level tests.

The chip test also supports the --dump-xmsgs flag, which generates transaction log files recording each xcel message sent/received over SPI. These transaction logs are not used in the ASIC flow itself, but they will be essential for future chip testing -- when we have fabricated silicon, we can replay these transaction logs through a real SPI master to verify that the physical chip produces the correct responses.

Let's go ahead and run all of the tests on the RTL model of the complete chip.

% cd ${HOME}/ece6745/lab9/sim/build
% pytest ../lab5_xcel/test/GcdXcelChip_test.py

3.4. Simulator

Take a look at the simulator script:

% cd ${HOME}/ece6745/lab9/sim/lab5_xcel
% code gcd-xcel-sim

The simulator supports three implementations:

  • --impl fl: Functional-level GCD accelerator (no RTL)
  • --impl rtl: RTL GCD accelerator with direct xcel interface
  • --impl rtl-chip: RTL GCD accelerator wrapped in chip-level I/O

For the chip flow, we use --impl rtl-chip which instantiates GcdXcelChip and uses the ChipTestHarness with the SpiMasterFL. The key flags for the ASIC flow are:

% cd ${HOME}/ece6745/lab9/sim/lab5_xcel
% ./gcd-xcel-sim --impl rtl-chip --input random --translate --dump-vtb --dump-xmsgs
  • --translate: Converts the PyMTL RTL to pickled Verilog for synthesis
  • --dump-vtb: Generates Verilog test benches for VCS simulation
  • --dump-xmsgs: Generates SPI transaction logs for future chip testing

4. Chip Flow Overview

Now that we understand the chip-level RTL design, let's look at the chip ASIC flow that will take this design all the way to layout.

4.1. Step Templates

The chip flow step templates are located in the asic/steps/chip directory:

% cd ${HOME}/ece6745/lab9/asic/steps/chip
% tree
.
├── 00-padring-gen
├── 01-pymtl-rtlsim
├── 02-synopsys-vcs-rtlsim
├── 03-synopsys-dc-synth
├── 04-synopsys-vcs-ffglsim
├── 05-cadence-innovus-pnr
├── 06-synopsys-pt-sta
├── 07-synopsys-vcs-baglsim
├── 08-synopsys-pt-pwr
├── 09-mentor-calibre-seal
├── 10-mentor-calibre-fill
├── 11-mentor-calibre-drc
├── 12-mentor-calibre-lvs
└── 13-summarize-results

Compared to the block flow from the previous lab (11 steps), the chip flow has 14 steps. The three new steps are:

  • 00-padring-gen: Generates the I/O padring placement files
  • 09-mentor-calibre-seal: Generates and merges the seal ring
  • 10-mentor-calibre-fill: Generates and merges metal/poly/via fill

Several existing steps are also modified to handle I/O cells:

  • 03-synopsys-dc-synth: Adds iocells.db to the target library
  • 05-cadence-innovus-pnr: Uses a fixed padring-aware floorplan with I/O cell placement and separate VDD/VSS power rings
  • 11-mentor-calibre-drc: Adds wirebond and metal-fuse DRC checks
  • 12-mentor-calibre-lvs: Uses iocells.sp and lvs-devices.sp for I/O cell SPICE models

4.2. Design YAML

Take a look at the design YAML file for the chip-level GCD accelerator:

% cd ${HOME}/ece6745/lab9/asic/designs
% code lab9-gcd-xcel-chip.yml

steps:
 - chip/00-padring-gen
 - chip/01-pymtl-rtlsim
 - chip/02-synopsys-vcs-rtlsim
 - chip/03-synopsys-dc-synth
 - chip/04-synopsys-vcs-ffglsim
 - chip/05-cadence-innovus-pnr
 - chip/06-synopsys-pt-sta
 - chip/07-synopsys-vcs-baglsim
 - chip/08-synopsys-pt-pwr
 - chip/09-mentor-calibre-seal
 - chip/10-mentor-calibre-fill
 - chip/11-mentor-calibre-drc
 - chip/12-mentor-calibre-lvs
 - chip/13-summarize-results

design_name  : GcdXcelChip_noparam
clock_period : 4.5
dump_vcd     : true

pymtl_rtlsim: |
  pytest ../../../sim/lab5_xcel/test/GcdXcelChip_test.py \
    --test-verilog --dump-vtb | tee -a run.log
  ...

tests:
  - GcdXcelChip_noparam_test_basic
  - GcdXcelChip_noparam_test_zeros
  ...

evals:
 - GcdXcelChip_noparam_gcd-xcel-sim-rtl-chip-zeros
 - GcdXcelChip_noparam_gcd-xcel-sim-rtl-chip-small
 - GcdXcelChip_noparam_gcd-xcel-sim-rtl-chip-random

The design YAML specifies all 14 chip flow steps (note the chip/ prefix). The design name is GcdXcelChip_noparam and the clock period is 4.5ns. Note the clock period is slower than the 3.0ns used in the block flow because I/O cell delays add overhead. When doing a rigorous comparative analysis with the processor we will use the block flow and set our clock contraint equal to what the processor can run out. However, for the chip flow you are free to use whatever frequency you like as long as you can close timing.

The pymtl_rtlsim section runs both the pytest test suite and the simulator with three input patterns (random, small, zeros). The tests list and evals list name all 15 tests and 3 evaluations that will be run through subsequent simulation steps.

4.3. Padring Configuration

Take a look at the padring configuration file:

% cd ${HOME}/ece6745/lab9/asic/steps/chip/00-padring-gen
% code padring-config.yaml

chip:
  pitch: 60
  pad_height: 102.4
  corner_size: 130
  sealring_width: 15
  width: 950
  height: 950

cells:
  io: PDDW0812CDG
  clk: PDDW0812SCDG
  poc: PVDD2POC
  io_vdd: PVDD2CDG
  core_vdd: PVDD1CDG
  common_vss: PVSS3CDG
  corner: PCORNER
  pad: PAD60LU_SL_SM

The chip dimensions are 950um x 950um. The pad_height (102.4um) is the height of the I/O cells, the corner_size (130um) is the size of the corner cells, and sealring_width (15um) is the width of the seal ring. The pitch (60um) is the spacing between bond pads.

The pad assignments for each side are:

# Left side pads (bottom to top) -- SPI bus grouped together
left:
  - CGVSS
  - IOVDD
  - cs
  - sclk
  - mosi
  - miso
  - CRVDD
  - CGVSS

# Right side pads (bottom to top) -- remaining signals
right:
  - CGVSS
  - IOVDD
  - clk
  - reset
  - clk_out
  - minion_parity
  - adapter_parity
  - UNBONDED

Each side has a mix of signal pads and power/ground pads. The pad types are:

  • CGVSS: Common ground pad
  • IOVDD: I/O voltage power pad
  • CRVDD: Core voltage power pad
  • POC: Power-on-control pad (exactly one required)
  • UNBONDED: Unbonded I/O VDD pad (used for pad count balance)
  • Signal names (e.g., cs, sclk): Signal I/O pads

The top and bottom sides contain only power/ground pads. The SPI bus signals are grouped on the left side for clean routing, while the clock, reset, and parity signals are on the right side. This setup will likely not be the final padring we use for the tapeouts, but it provides a reasonable organization for the purposes of this lab and early trials for your own accelerators.

5. Running the Chip Flow

Let's generate the chip flow scripts:

% mkdir -p ${HOME}/ece6745/lab9/asic/build-gcd-xcel-chip
% cd ${HOME}/ece6745/lab9/asic/build-gcd-xcel-chip
% pyhflow ../designs/lab9-gcd-xcel-chip.yml

Just like the block flow, pyhflow copies the step template directories into the build directory and applies Jinja2 template substitution. For example, let's see how the synthesis script was filled in:

% cd ${HOME}/ece6745/lab9/asic/build-gcd-xcel-chip
% code 03-synopsys-dc-synth/run.tcl

Notice how {{ design_name }} has been replaced with GcdXcelChip_noparam and {{ clock_period }} has been replaced with 4.5:

analyze -format sverilog ../01-pymtl-rtlsim/GcdXcelChip_noparam__pickled.v
elaborate GcdXcelChip_noparam
...
create_clock [get_ports clk] -name ideal_clock1 -period 4.5

5.1. Padring Generation

Let's run the padring generation step:

% cd ${HOME}/ece6745/lab9/asic/build-gcd-xcel-chip
% ./00-padring-gen/run

The run-padring-gen.py script reads the padring-config.yaml and generates two output files:

  • padring_gen.io: An I/O assignment file that tells Cadence Innovus where to place the I/O cells (used during init_design)
  • padring_gen.tcl: A Tcl script that places bond pads at computed positions and adds route blockages in the I/O cell regions

Take a look at these files.

% cd ${HOME}/ece6745/lab9/asic/build-gcd-xcel-chip
% code ./00-padring-gen/padring_gen.io
% code ./00-padring-gen/padring_gen.tcl

These files are consumed later during the place-and-route step.

5.2. Chip Front-End Flow

We are now ready to run steps 1-4. Run each step one at a time looking for errors.

% cd ${HOME}/ece6745/lab9/asic/build-gcd-xcel-chip
% ./01-pymtl-rtlsim/run
% ./02-synopsys-vcs-rtlsim/run
% ./03-synopsys-dc-synth/run
% ./04-synopsys-vcs-ffglsim/run

5.3. Chip Back-End Flow

For the place-and-route step we will be using the GUI to be able to see the results.

% cd ${HOME}/ece6745/lab9/asic/build-gcd-xcel-chip/05-cadence-innovus-pnr
% innovus
innovus> set interactive 1
innovus> source run.tcl

When using interactive pause mode, the run.tcl script will run one stage at a time and then pause. You can inspect the results and type go when you are ready to move on to the next stage. Once you have finished check the timing and area reports:

% cd ${HOME}/ece6745/lab9/asic/build-gcd-xcel-chip
% cat 05-cadence-innovus-pnr/timing-setup.rpt
% cat 05-cadence-innovus-pnr/timing-hold.rpt
% cat 05-cadence-innovus-pnr/area.rpt

Verify that both setup and hold slack are positive. Also check the log output for verifyConnectivity, verify_drc, and verify_antenna to make sure there are no errors.

Take a closer look at the hierarchical area report:

% cd ${HOME}/ece6745/lab9/asic/build-gcd-xcel-chip
% cat 05-cadence-innovus-pnr/area.rpt

The area report shows a breakdown by module. Here is a simplified view of the key modules:

 Hinst Name              Module Name                                      Total Area
 ---------------------------------------------------------------------------------------
 GcdXcelChip_noparam                                                      77282.579
   v/clk_io              InputIO_is_clk1                                   5113.171
   v/reset_io            InputIO_3                                         5113.171
   v/cs_io               InputIO_2                                         5113.171
   v/sclk_io             InputIO_1                                         5113.171
   v/mosi_io             InputIO_0                                         5113.171
   v/miso_io             OutputIO_2                                        5121.952
   v/minion_parity_io    OutputIO_1                                        5135.123
   v/adapter_parity_io   OutputIO_0                                        5106.586
   v/clk_out_io          OutputIO_is_clk1                                  5124.147
   v/minion              spi_Minion_BIT_WIDTH38_N_SAMPLES4                 21627.110
     v/minion/adapter1   spi_helpers_Minion_Adapter_...                    15563.968
     v/minion/minion     spi_helpers_Minion_PushPull_...                    6063.142
   v/xcel                lab5_xcel_GcdXcel                                  9349.357
     v/xcel/gcd          tut3_verilog_gcd_GcdUnit                          4432.109
     v/xcel/mngr         lab5_xcel_GcdXcelMngr                             4910.662

Notice how the area breaks down across the chip:

  • I/O pads: ~46,000 um^2 (9 pads at ~5,100 um^2 each) -- this dominates the total area at about 60%
  • SPI minion: ~21,600 um^2 (~28% of total area) -- the SPI interface is surprisingly large, with the adapter queues (adapter1) consuming ~15,600 um^2 and the push/pull shift registers (minion) consuming ~6,100 um^2
  • GCD accelerator: ~9,300 um^2 (~12% of total area) -- the actual compute logic is a small fraction of the total chip

This is a common pattern in chip design: the I/O infrastructure and communication interfaces often dominate the area, while the actual compute logic is relatively small. When you push your own accelerator through the chip flow, you should look at this area breakdown to understand how much area your accelerator adds compared to the I/O and SPI overhead.

We can now complete the remaining steps of the chip flow using the run scripts.

% cd ${HOME}/ece6745/lab9/asic/build-gcd-xcel-chip
% ./06-synopsys-pt-sta/run
% ./07-synopsys-vcs-baglsim/run
% ./08-synopsys-pt-pwr/run
% ./09-mentor-calibre-seal/run
% ./10-mentor-calibre-fill/run
% ./11-mentor-calibre-drc/run
% ./12-mentor-calibre-lvs/run
% ./13-summarize-results/run

Take a close look at the results summary. For a chip to be eligible for tapeout, the following must all be true:

  • All PyMTL 2-state RTL simulations pass
  • All four-state RTL simulations pass
  • All fast-functional gate-level simulations pass
  • All back-annotated gate-level simulations pass
  • Place-and-route setup slack is positive
  • Place-and-route hold slack is positive
  • PrimeTime setup slack is positive
  • PrimeTime hold slack is positive
  • All four DRC types pass (zero violations)
  • LVS passes (CORRECT)

If your design does not meet timing after synthesis but does meet timing after place-and-route then these are still valid results. If PrimeTime STA passes timing but Innovus fails timing, this is not valid -- you must go back and modify your design to fix this.

5.4. Viewing the Chip Layout

You can load the design in Cadence Innovus for interactive debugging:

% cd ${HOME}/ece6745/lab9/asic/build-gcd-xcel-chip/05-cadence-innovus-pnr
% innovus
innovus> source post-pnr.enc

Use Windows > Workspaces > Design Browser + Physical to browse the design hierarchy. Right click on a module and choose Highlight to color different modules. You can use Timing > Debug Timing to visualize the critical path on the layout.

You can use Klayout to view the chip layout at various stages:

% cd ${HOME}/ece6745/lab9/asic/build-gcd-xcel-chip/05-cadence-innovus-pnr
% klayout -l ${TSMC_180NM}/klayout.lyp post-pnr.gds

You should see the core logic in the center surrounded by I/O cells around the perimeter. You can use Display > Full Hierarchy to show all layout detail including standard cell internals.

To see the final layout with seal ring and fill:

% cd ${HOME}/ece6745/lab9/asic/build-gcd-xcel-chip/10-mentor-calibre-fill
% klayout -l ${TSMC_180NM}/klayout.lyp post-filled.gds

6. Todo On Your Own

We have pushed the chip flow files to your project 2 repos. Go ahead and implement the chip top-level module for project 2 in the same way you did for the GCD accelerator. Then try pushing project 2 through the chip flow as you start pushing towards tapeout!
